JB5CS04F Series
Manufacturer: JAE Electronics
Beta
⌘K

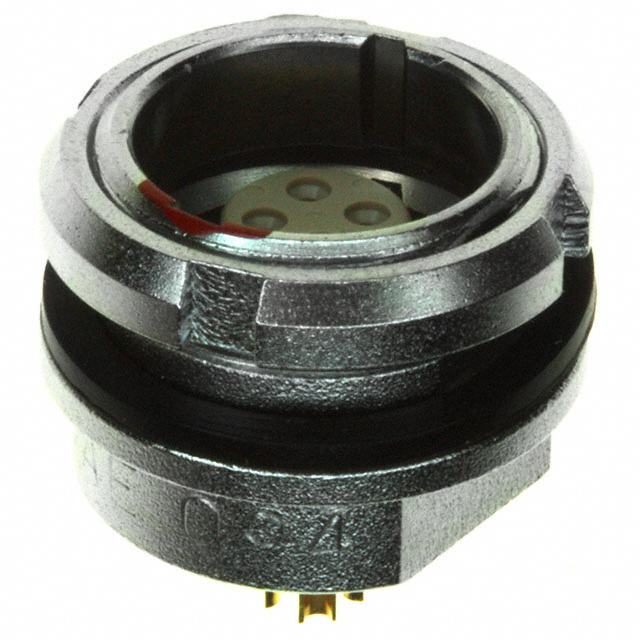

CONN RCPT FMALE 4POS SOLDER CUP
| Part | Mounting Feature | Shell Finish | Number of Positions | Shell Size - Insert | Color | Contact Finish - Mating | Ingress Protection | Primary Material | Features | Orientation | Mounting Type | Contact Material | Insert Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Current Rating (Amps) | Connector Type | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Voltage Rating | Shielding | Shell Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Bulkhead - Front Side Nut | Chromium | 4 | S | Silver | Gold | IP68 - Dust Tight Waterproof | Metal | Dust Cap | N (Normal) | Panel Mount | Copper Alloy | Synthetic Resin | 0.76 Ám | 30 Áin | 3 A | Receptacle Female Sockets | Medical Telecommunications Test & Measurement | -55 C | 85 °C | Push-Pull | 320 VAC | Shielded | Copper Alloy |
