PPTC281 Series

Catalog

CONN HDR 28POS 0.1 TIN PCB R/A

Part	Contact Shape	Insulation Material	Contact Material	Contact Length - Post	Contact Length - Post	Fastening Type	Contact Type	Connector Type	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Contact Finish - Post	Mounting Type	Insulation Color	Termination	Number of Rows	Material Flammability Rating	Current Rating (Amps)	Voltage Rating	Contact Length - Post [x]	Contact Length - Post [x]

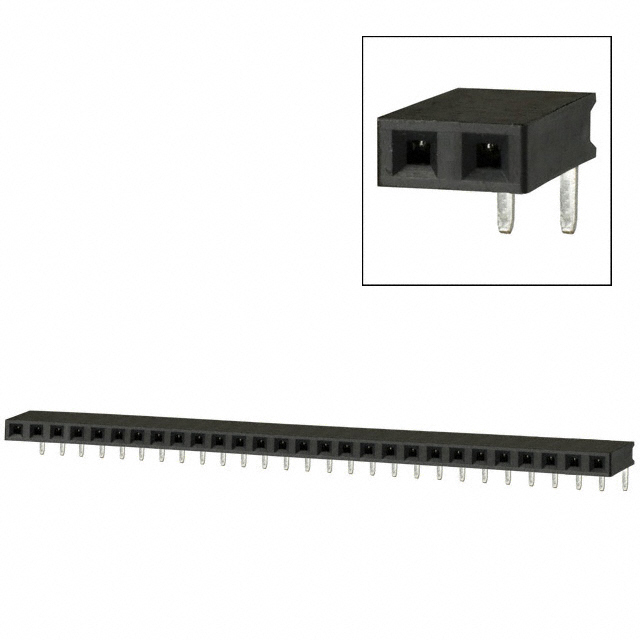

Sullins Connector Solutions PPTC281LGBN	Square	Polyester	Phosphor Bronze	0.124 in	3.15 mm	Push-Pull	Female Socket	Header	0.1 in	2.54 mm	0.1 "	2.54 mm	28	-40 C	105 ░C	All	Tin	Right Angle Through Hole	Black	Solder	1	UL94 V-0	3 A	250 V

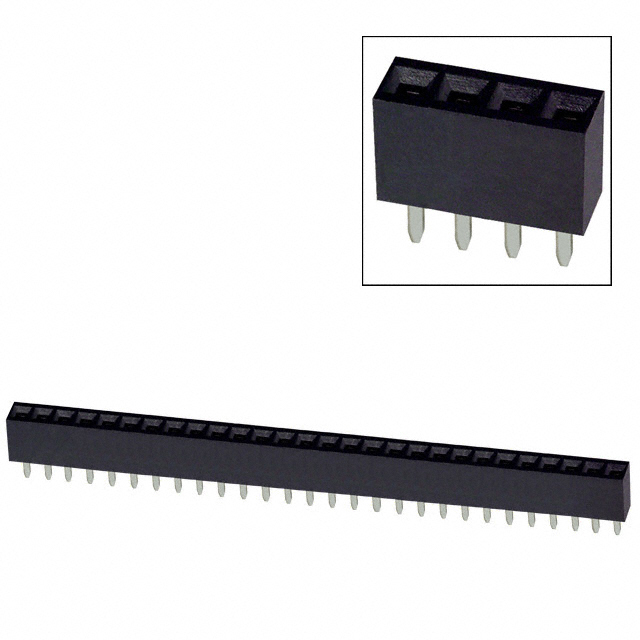

Sullins Connector Solutions PPTC281LFBN-RC	Square	Polyester	Phosphor Bronze			Push-Pull	Female Socket	Header	0.335 "	8.51 mm	0.1 "	2.54 mm	28	-40 C	105 ░C	All	Tin	Through Hole	Black	Solder	1	UL94 V-0	3 A	250 V	0.126 "	3.2 mm
