STT1400 Series
Manufacturer: INFINEON
Beta
⌘K

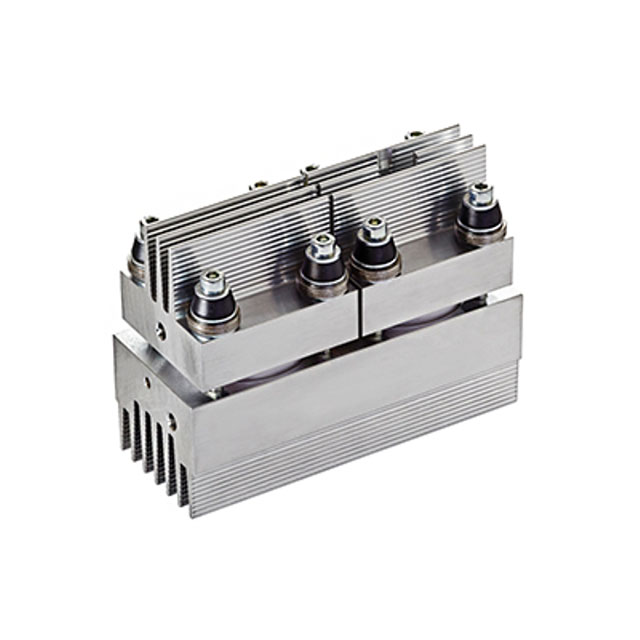

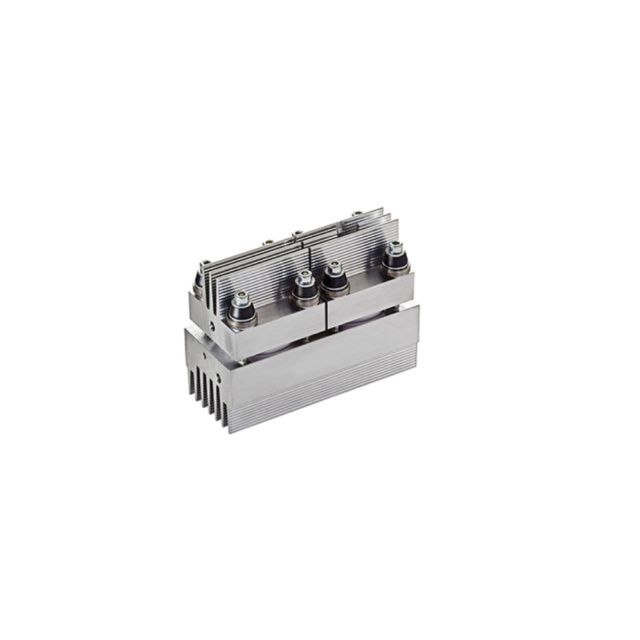

1600 V, 1400 A SOFT STARTER MODULE WITH PRESSURE CONTACT TECHNOLOGY
| Part | Voltage - Gate Trigger (Vgt) (Max) [Max] [custom] | Package / Case | Current - Hold (Ih) (Max) [Max] | Current - Gate Trigger (Igt) (Max) [Max] | Voltage - Off State | Current - Non Rep. Surge 50, 60Hz (Itsm) | Operating Temperature | Mounting Type | Structure | Number of SCRs, Diodes |
|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 2 V | Module | 300 mA | 200 mA | 1.6 kV | 10500 A | 125 ¯C | Chassis Mount | 1-Phase Controller - All SCRs | 2 SCRs |
 INFINEON | 2 V | Module | 300 mA | 200 mA | 1.8 kV | 10500 A | 125 ¯C | Chassis Mount | 1-Phase Controller - All SCRs | 2 SCRs |
