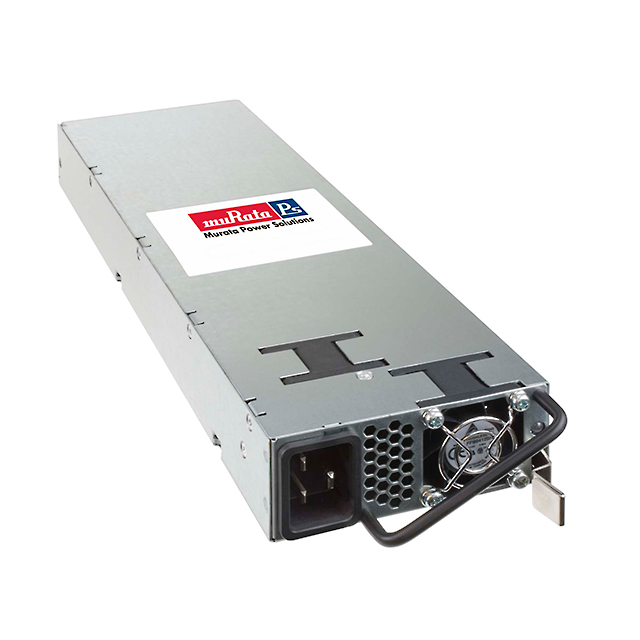

D1U4-W Series

Catalog

AC/DC CONVERTER 12V 1600W

Part	Efficiency	Approval Agency	Voltage - Isolation	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Type	Number of Outputs	Current - Output 1	Voltage - Output 1	Power (Watts)	Voltage - Input [Max]	Voltage - Input [Min]	Mounting Type	Features	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]
Murata Electronics D1U4-W-1600-12-HC1C	90.6 %	CB cCSAus CE TUV	3000 V	ITE (Commercial)	50 °C	0 °C	Front End	1	131.6 A	12 V	1.6 kW	264 VAC	90 VAC	Rack Mount	Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote Sense Standby Output Universal Input	41 mm	14 "	101.6 mm	355.6 mm	1.6 in	101.6 mm
Murata Electronics D1U4-W-1200-12-HC1C	90.6 %	cCSAus CE TUV	3000 V	ITE (Commercial)	50 °C	0 °C	Front End	1	98.3 A	12 V	1200 W	264 VAC	90 VAC	Rack Mount	Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote Sense Standby Output Universal Input	41 mm	14 "	101.6 mm	355.6 mm	1.6 in	101.6 mm
Murata Electronics D1U4-W-1600-54-HB4C	90 %		3000 V	ITE (Commercial)	70 °C	-40 C	Front End	1	30 A	54 V	1.6 kW	264 VAC	90 VAC	Rack Mount	Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote Sense Standby Output Universal Input	41 mm	14 "	101.6 mm	355.6 mm	1.6 in	101.6 mm
