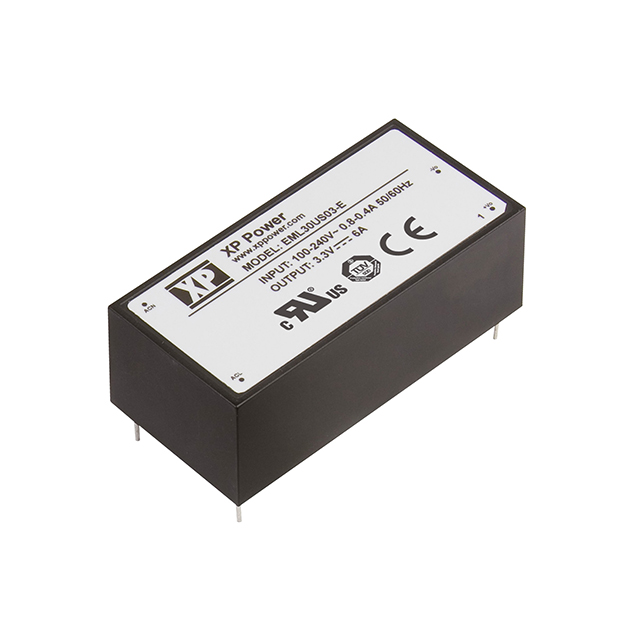

EML30US03 Series
Manufacturer: XP Power
Beta
⌘K
AC/DC CONVERTER 3.3V 30W
| Part | Line Regulation | Load Regulation | Weight | Weight | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Applications | Standard Number | Package / Case | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] | Power (Watts) | Type | Number of Outputs | Features | Mounting Type | Voltage - Output 1 | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP Power | 0.5 % | ±1% | 0.35 lb | 158.76 g | 1.1 in | 38.1 mm | 27.9 mm | 78.7 mm | 3.1 in | 1.5 " | Medical | 60601-1 | 4-DIP Module | CB TUV UL | 70 °C | -20 °C | 6 A | 30 Watts | Enclosed | 1 | Universal Input | Through Hole | 3.3 V | 72 % |
