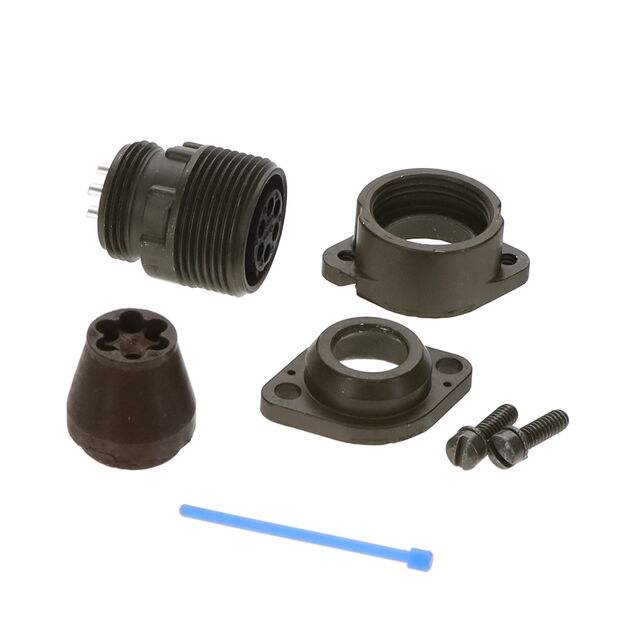

MS3101R14 Series
Manufacturer: Amphenol Aerospace Operations
Beta
⌘K
RECEPT
| Part | Connector Type | Fastening Type | Insert Material | Grade | Features | Contact Finish - Mating | Shell Size - Insert | Contact Material | Applications | Qualification | Shell Material | Voltage Rating (AC) | Voltage Rating (DC) | Number of Positions | Orientation | Mounting Type | Termination | Operating Temperature (Max) | Operating Temperature (Min) | Shell Finish | Shielding | Color | Ingress Protection | Current Rating | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Aerospace Operations | |||||||||||||||||||||||||
 Amphenol Aerospace Operations | Female Sockets Receptacle | Threaded | Neoprene | Military | Backshell | Silver | 14S-6 | Copper Alloy | Marine Military | MIL-DTL-5015 | Aluminum Alloy | 200 VAC | 250 VDC | 6 | N (Normal) | Free Hanging (In-Line) | Solder Cup | 125 °C | -55 °C | Cadmium Olive Drab Chromate | Unshielded | Olive Drab | Environment Resistant | 13 A | Metal |
