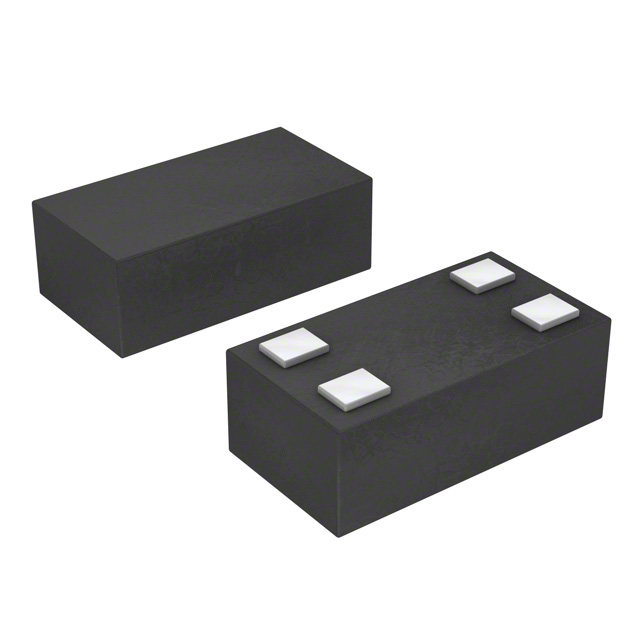

CP0603 High Directivity Series
Manufacturer: KYOCERA AVX
Beta
⌘K
DIRECTIONAL COUPLER / TAPE/REEL, 7 INCH PLASTIC EMBOSSED TAPE ROHS COMPLIANT: YES
| Part | Package / Case | Package / Case | Insertion Loss | Applications | Frequency [Max] | Frequency [Min] | Coupling Factor | Power - Max [Max] | Return Loss | Isolation | Coupler Type | Frequency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KYOCERA AVX | ||||||||||||
KYOCERA AVX | ||||||||||||
KYOCERA AVX | 1608 Metric | 0603 | 0.25 dB | GSM | 915 MHz | 890 MHz | 19.4 dB | 3 W | 27 dB | -43 dB | Standard | |
KYOCERA AVX | ||||||||||||
KYOCERA AVX | 1608 Metric | 0603 | 0.3 dB | E-GSM | 960 MHz | 925 MHz | 21 dB | 3 W | 30 dB | -47 dB | Standard | |
KYOCERA AVX | ||||||||||||
KYOCERA AVX | 1608 Metric | 0603 | 1.4 dB | Wireless LAN | 2.484 GHz | 2.4 GHz | 7 dB | 3 W | -16 dB | -29 dB | Standard | |
KYOCERA AVX | ||||||||||||
 KYOCERA AVX | 1608 Metric | 0603 | 3 W | Standard | 1.95 GHz | |||||||
KYOCERA AVX | 1608 Metric | 0603 | 0.5 dB | PCS | 1.91 GHz | 1.85 GHz | 13.2 dB | 3 W | 22 dB | -36 dB | Standard |
