VOW137 Series
Manufacturer: Vishay Semiconductor Opto Division
Beta
⌘K

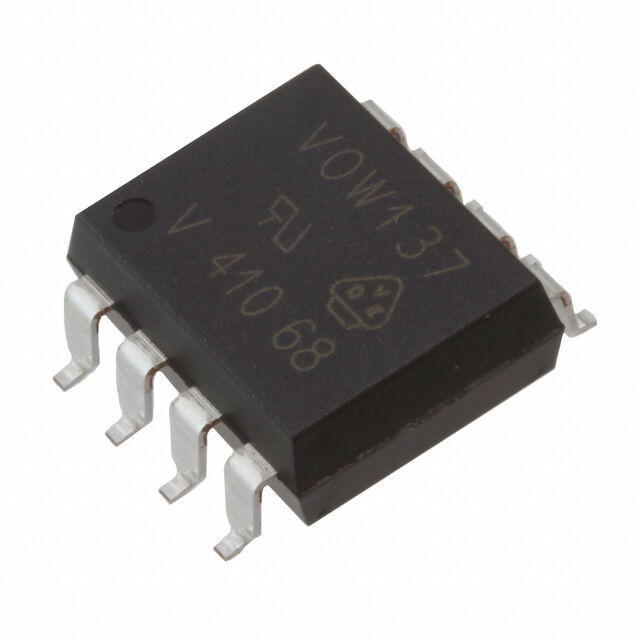

OPTOISO 5.3KV OPN COLLECTOR 8SMD
| Part | Number of Channels [custom] | Output Type | Common Mode Transient Immunity (Min) [Min] | Voltage - Isolation [custom] | Inputs - Side 1/Side 2 [custom] | Inputs - Side 1/Side 2 [custom] | Input Type | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output / Channel | Data Rate | Supplier Device Package | Mounting Type | Propagation Delay tpLH / tpHL (Max) [Max] | Rise / Fall Time (Typ) | Current - DC Forward (If) (Max) [Max] | Voltage - Supply [Max] | Voltage - Supply [Min] | Voltage - Forward (Vf) (Typ) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay Semiconductor Opto Division | 1 | Open Collector | 10 kV/µs | 5300 Vrms | 1 | 0 | DC | -40 C | 100 °C | 50 mA | 10 Mbps | 8-SMD | Surface Mount | 100 ns | 7 ns 14 ns | 20 mA | 5.5 V | 4.5 V | 1.4 V |
