OA225AP Series
Manufacturer: ORION FANS
Beta
⌘K

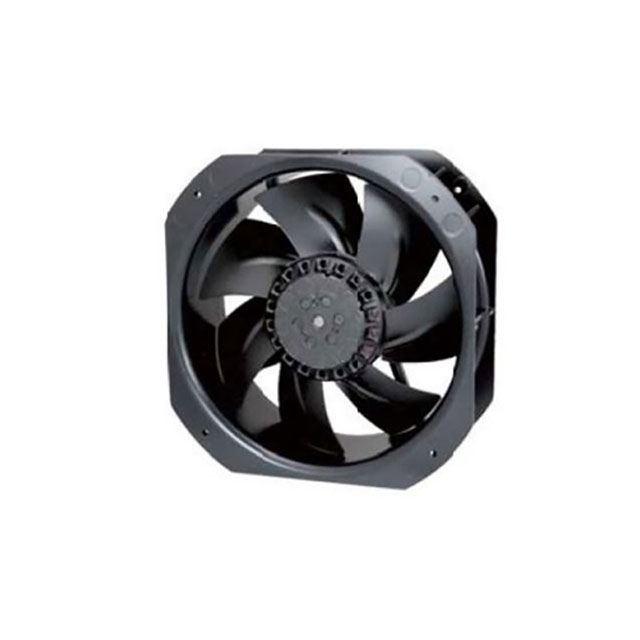

AC AXIAL FAN, 230V, SQUARE, 225 MM, 80 MM, BALL BEARING, 620 CFM
| Part | Material - Frame | Material - Blade | Lifetime @ Temp. | Features | Ingress Protection | Voltage - Rated | Approval Agency | Static Pressure | Static Pressure | Air Flow | Air Flow | Noise | Weight | Weight | Width [y] | Size / Dimension [x] | Size / Dimension [z] | Termination | Fan Type | Power (Watts) | Bearing Type | RPM | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ORION FANS | Aluminum | Metal | 45000 Hrs | Capacitor Thermal Overload Protector (TOP) | IP69K | 230 VAC | CE cURus TUV UR | 184.3 Pa | 0.74 in H2O | 17.36 m³/min | 620 CFM | 66 dB | 4.8 lbs | 2.2 kg | 80 mm | 225 mm | 225 mm | 2 Wire Leads | Tubeaxial | 80 W | Ball | 3100 RPM | |
 ORION FANS | Aluminum | Steel | 45000 Hrs | Capacitor Thermal Overload Protector (TOP) | IP68 - Dust Tight Waterproof | 230 VAC | CE cURus TUV UR | 184.3 Pa | 0.74 in H2O | 17.36 m³/min | 620 CFM | 66 dB | 4.8 lbs | 2.2 kg | 80 mm | 225 mm | 225 mm | Tubeaxial | 80 W | Ball | 3100 RPM | 2 | |
 ORION FANS | Aluminum | Metal | 45000 Hrs | Capacitor Thermal Overload Protector (TOP) | IP69K | 115 VAC | CE cURus TUV UR | 184.3 Pa | 0.74 in H2O | 17.36 m³/min | 620 CFM | 66 dB | 4.8 lbs | 2.2 kg | 80 mm | 225 mm | 225 mm | 2 Wire Leads | Tubeaxial | 80 W | Ball | 3100 RPM | |
ORION FANS | Aluminum | Metal | 45000 Hrs | Capacitor Thermal Overload Protector (TOP) | IP69K | 115 VAC | CE cURus TUV UR | 184.3 Pa | 0.74 in H2O | 17.36 m³/min | 620 CFM | 66 dB | 4.8 lbs | 2.2 kg | 80 mm | 225 mm | 225 mm | Tubeaxial | 80 W | Ball | 3100 RPM | 2 | |
ORION FANS | Aluminum | Metal | 45000 Hrs | Capacitor Thermal Overload Protector (TOP) | IP69K | 230 VAC | CE cURus TUV UR | 184.3 Pa | 0.74 in H2O | 17.36 m³/min | 620 CFM | 66 dB | 4.8 lbs | 2.2 kg | 80 mm | 225 mm | 225 mm | Tubeaxial | 80 W | Ball | 3100 RPM | 2 | |
ORION FANS | Aluminum | Steel | 45000 Hrs | Capacitor Thermal Overload Protector (TOP) | IP68 - Dust Tight Waterproof | 230 VAC | CE cURus TUV UR | 184.3 Pa | 0.74 in H2O | 17.36 m³/min | 620 CFM | 66 dB | 4.8 lbs | 2.2 kg | 80 mm | 225 mm | 225 mm | 2 Wire Leads | Tubeaxial | 80 W | Ball | 3100 RPM | |
 ORION FANS | Aluminum | Steel | 45000 Hrs | Capacitor Thermal Overload Protector (TOP) | IP68 - Dust Tight Waterproof | 115 VAC | CE cURus TUV UR | 184.3 Pa | 0.74 in H2O | 17.36 m³/min | 620 CFM | 66 dB | 4.8 lbs | 2.2 kg | 80 mm | 225 mm | 225 mm | 2 Wire Leads | Tubeaxial | 80 W | Ball | 3100 RPM | |
 ORION FANS | Aluminum | Steel | 45000 Hrs | Capacitor Thermal Overload Protector (TOP) | IP68 - Dust Tight Waterproof | 115 VAC | CE cURus TUV UR | 184.3 Pa | 0.74 in H2O | 17.36 m³/min | 620 CFM | 66 dB | 4.8 lbs | 2.2 kg | 80 mm | 225 mm | 225 mm | Tubeaxial | 80 W | Ball | 3100 RPM | 2 |
