3110-10 Series
Manufacturer: CNC Tech
Beta
⌘K
CONN HEADER VERT 10POS 2MM
| Part | Contact Finish - Mating | Features | Contact Type | Insulation Material | Termination | Style | Contact Length - Post [x] | Contact Length - Post [x] | Row Spacing - Mating | Row Spacing - Mating | Number of Positions Loaded | Contact Shape | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows [custom] | Contact Material | Material Flammability Rating | Connector Type | Shrouding | Number of Positions | Mounting Type | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CNC Tech | Gold | Keying Slot | Male Pin | Polybutylene Terephthalate (PBT) | Solder | Board to Cable/Wire | 0.122 in | 3.1 mm | 2 mm | 0.079 in | All | Square | 0.079 " | 2 mm | Flash | -40 C | 105 ░C | 2 | Brass | UL94 V-0 | Header | Shrouded - 4 Wall | 10 | Through Hole | Push-Pull |
 CNC Tech | Gold | Keying Slot | Male Pin | Polybutylene Terephthalate (PBT) | Solder | Board to Cable/Wire | 2 mm | 0.079 in | All | Square | 0.079 " | 2 mm | Flash | -40 C | 105 ░C | 2 | Brass | UL94 V-0 | Header | Shrouded - 4 Wall | 10 | Surface Mount | Push-Pull | ||

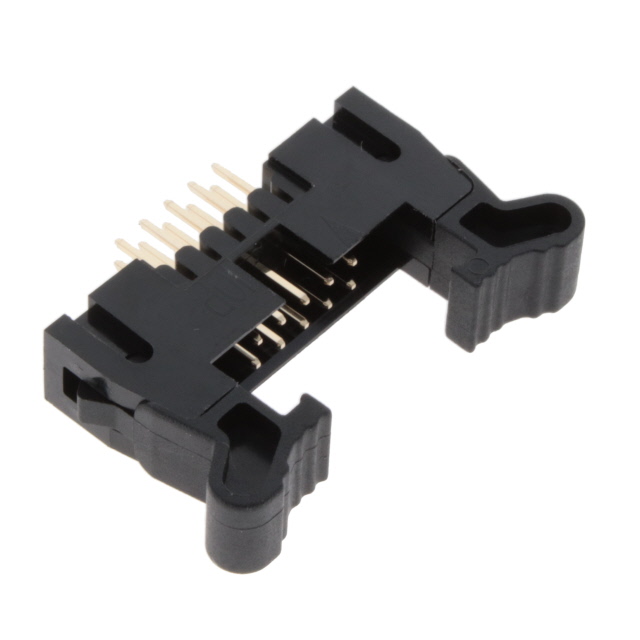

 CNC Tech | Gold | Keying Slot | Male Pin | Polybutylene Terephthalate (PBT) | Solder | Board to Cable/Wire | 0.122 in | 3.1 mm | 2 mm | 0.079 in | All | Square | 0.079 " | 2 mm | Flash | -40 C | 105 ░C | 2 | Brass | UL94 V-0 | Header | Shrouded - 4 Wall | 10 | Through Hole | Latch Lock/Eject Hooks |
