6EP33116 Series
Manufacturer: Siemens
Beta
⌘K

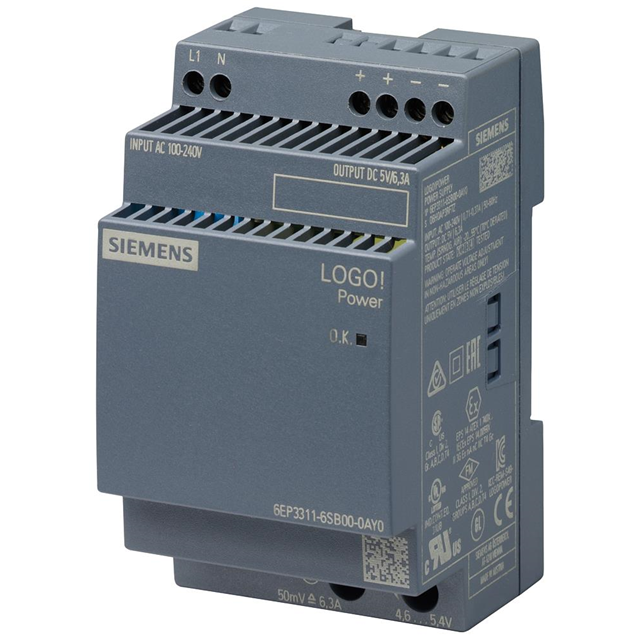

AC/DC DIN RAIL SUPPLY 5V 32W
| Part | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | DC Voltage - Input (Min) [Min] | Features | Voltage - Output 1 | Input Type | Power (Watts) | Approval Agency | AC Voltage - Input [Max] | AC Voltage - Input [Min] | DC Voltage - Input (Max) [Max] | Applications | Efficiency | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Siemens | 3.54 " | 90 mm | 53 mm | 2.09 in | 54 mm | 2.13 in | 110 V | Adjustable Output IP20 Universal Input | 5 V | AC or DC | 32 W | CB cCSAus CE CSA cUL cULus UL | 240 VAC 264 VAC | 85 VAC 100 VAC | 300 V | Hazardous Locations Industrial ITE (Commercial) | 80 % | 1 | 70 °C | -25 °C | 6.3 A | 60950-1; UL 508 |
