1EDN7511 Series
Manufacturer: INFINEON
Beta
⌘K

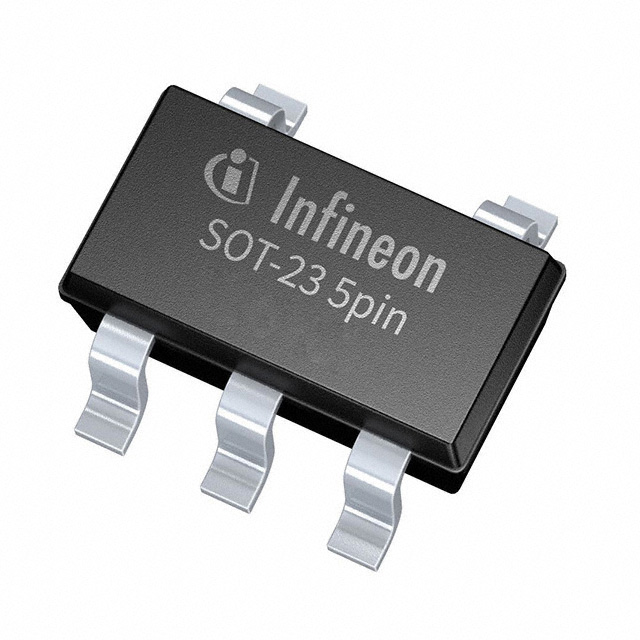

EICEDRIVER™ 20 V LOW-SIDE DRIVER IC WITH TYPICAL 4 A SOURCE AND 8 A SINK OUTPUT CURRENTS. IT COMES WITH A NON-ISOLATED PG-SOT23-6 PACKAGE AND WORKS WITH GAN HEMTS, IGBTS AND MOSFETS. FEATURES: ENABLE, SEPARATE SINK/SOURCE OUTPUTS
| Part | Gate Type | Package / Case | Number of Drivers | Logic Voltage - VIL, VIH | Channel Type | Input Type | Rise / Fall Time (Typ) [custom] | Rise / Fall Time (Typ) [custom] | Voltage - Supply [Max] | Voltage - Supply [Min] | Supplier Device Package | Current - Peak Output (Source, Sink) [custom] | Current - Peak Output (Source, Sink) [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Driven Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | MOSFET (N-Channel P-Channel) N-Channel MOSFET P-Channel MOSFET | SOT-23-6 | 1 | 1.2 V 1.9 V | Single | Inverting Non-Inverting | 6.5 ns | 4.5 ns | 20 V | 4.5 V | PG-SOT23-6-2 | 8 A | 4 A | -40 °C | 150 °C | Surface Mount | Low-Side |
 INFINEON | IGBT MOSFET (N-Channel) N-Channel MOSFET | SOT-23-6 | 1 | 1.2 V 1.9 V | Single | Inverting Non-Inverting | 20 V | 4.5 V | PG-SOT23-6-2 | 8 A | 4 A | -40 °C | 150 °C | Surface Mount | Low-Side |
