W2G110 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

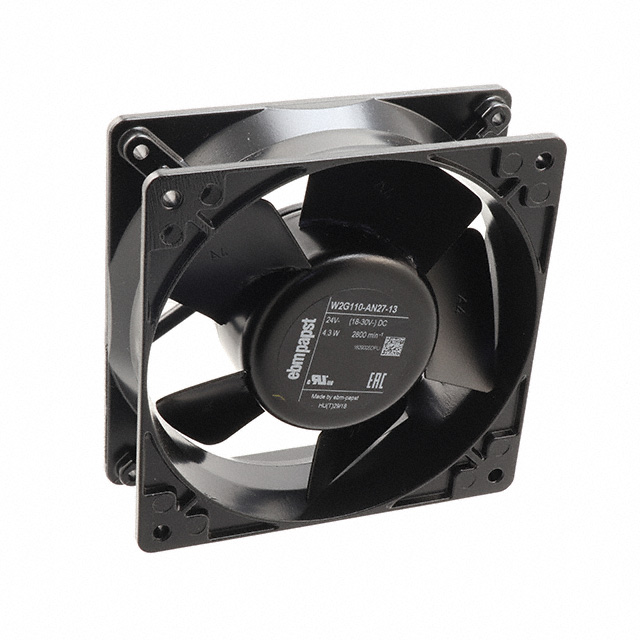

FAN AXIAL 119X38MM 24VDC TERM
| Part | Material - Blade | Current Rating (Amps) | Voltage Range [Min] | Voltage Range [Max] | Material - Frame | Fan Type | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Width [y] | Approval Agency | RPM | Ingress Protection | Voltage - Rated | Power (Watts) | Size / Dimension | Size / Dimension [x] | Size / Dimension [y] | Bearing Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Steel | 0.18 A | 18 VDC | 30 V | Aluminum | Tubeaxial | 2 | -25 °C | 162 °F | -25 °C | 72 °C | 38 mm | EAC UL | 2800 RPM | IP22 | 24 VDC | 4.3 W | Square | 119 mm | 119 mm | Ball | Locked Rotor Protection Thermal Overload Protector (TOP) |
