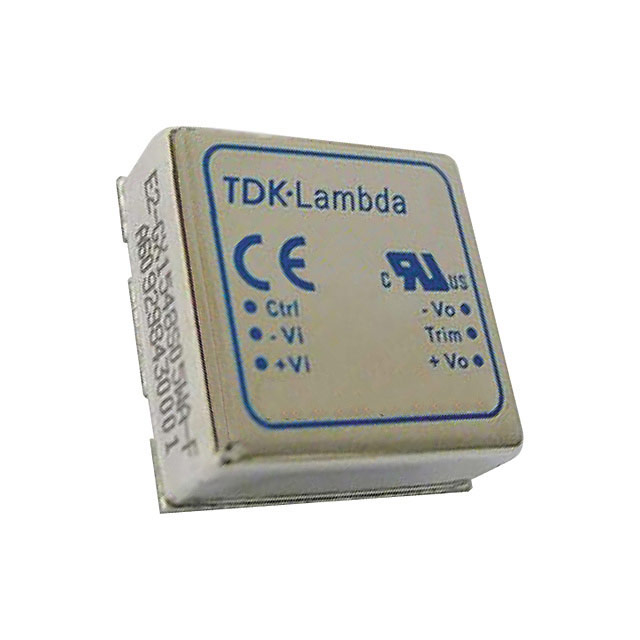

PXB15 Series
Manufacturer: TDK Corporation
Beta
⌘K
ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 2:1, 15.6 W, 1 OUTPUT, 12 V
| Part | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Efficiency | Voltage - Output 1 | Mounting Type | Features | Voltage - Input (Min) [Min] | Current - Output (Max) [Max] | Type | Package / Case | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Control Features | Voltage - Isolation | Voltage - Input (Max) [Max] | Applications | Number of Outputs | Voltage - Output 2 | Current - Output (Max) [Max] | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 88 % | 12 V | Through Hole | OCP OVP Remote On/Off SCP | 36 V | 1.3 A | Isolated Module | 6-DIP Module | 15 W | 85 °C | -40 C | Active Low Enable | 1.6 kV | 75 V | ITE (Commercial) | 1 | |||
TDK Corporation | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 87 % | 12 V | Through Hole | OCP OVP Remote On/Off SCP | 18 V | 1.3 A | Isolated Module | 6-DIP Module | 15 W | 85 °C | -40 C | Active Low Enable | 1.6 kV | 36 V | ITE (Commercial) | 1 | |||
TDK Corporation | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 89 % | 12 V | Through Hole | OCP OVP Remote On/Off SCP | 36 V | 625 mA | Isolated Module | 6-DIP Module | 15 W | 85 °C | -40 C | Active Low Enable | 1.6 kV | 75 V | ITE (Commercial) | 2 | -12 V | 625 mA | |
 TDK Corporation | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 87 % | 12 V | Through Hole | OCP OVP Remote On/Off SCP | 9 V | 625 mA | Isolated Module | 6-DIP Module | 15 W | 85 °C | -40 C | Active Low Enable | 1.6 kV | 36 V | ITE (Commercial) | 2 | -12 V | 625 mA | |
TDK Corporation | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 86 % | 3.3 V | Through Hole | OCP OVP Remote On/Off SCP | 18 V | 4 A | Isolated Module | 6-DIP Module | 15 W | 85 °C | -40 C | Active Low Enable | 1.6 kV | 36 V | ITE (Commercial) | 1 | |||
TDK Corporation | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 87 % | 15 V | Through Hole | OCP OVP Remote On/Off SCP | 18 V | 1 A | Isolated Module | 6-DIP Module | 15 W | 85 °C | -40 C | Active Low Enable | 1.6 kV | 75 V | ITE (Commercial) | 1 | |||
TDK Corporation | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 88 % | 15 V | Through Hole | OCP OVP Remote On/Off SCP | 18 V | Isolated Module | 6-DIP Module | 15 W | 85 °C | -40 C | Active Low Enable | 1.6 kV | 36 V | ITE (Commercial) | 2 | -15 V | 500 mA | ||
TDK Corporation | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 88 % | 12 V | Through Hole | OCP OVP Remote On/Off SCP | 18 V | 625 mA | Isolated Module | 6-DIP Module | 15 W | 85 °C | -40 C | Active Low Enable | 1.6 kV | 36 V | ITE (Commercial) | 2 | -12 V | 625 mA | |
TDK Corporation | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 87 % | 15 V | Through Hole | OCP OVP Remote On/Off SCP | 18 V | Isolated Module | 6-DIP Module | 15 W | 85 °C | -40 C | Active Low Enable | 1.6 kV | 75 V | ITE (Commercial) | 2 | -15 V | 500 mA | ||
TDK Corporation | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 84 % | 3.3 V | Through Hole | OCP OVP Remote On/Off SCP | 9 V | 4 A | Isolated Module | 6-DIP Module | 15 W | 85 °C | -40 C | Active Low Enable | 1.6 kV | 18 V | ITE (Commercial) | 1 |
