OSTVN08 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

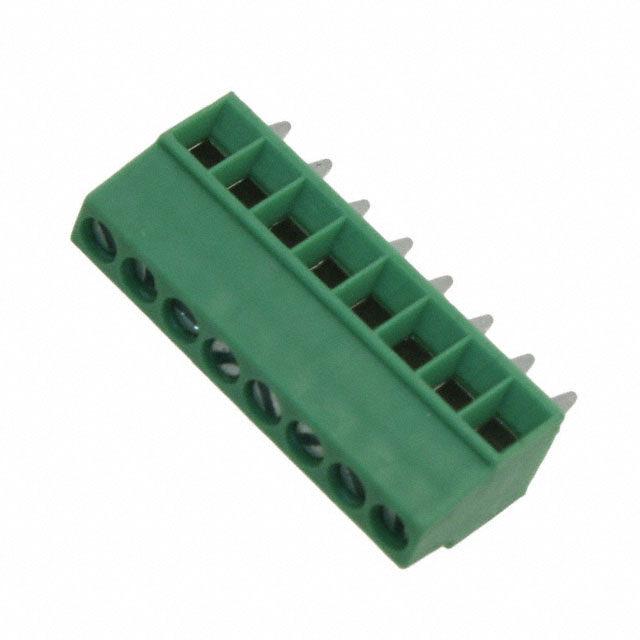

TERM BLK 8P SIDE ENT 2.54MM PCB
| Part | Housing Material | Torque - Screw | Torque - Screw | Contact Material - Plating | Screw Thread | Clamp Material - Plating | Screw Material - Plating | Operating Temperature [Min] | Operating Temperature [Max] | Voltage | Wire Termination | Current | Color | Number of Levels | Mating Orientation | Pitch | Pitch | Positions Per Level | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | Thermoplastic | 1.3 Lb-In | 0.15 Nm | Brass | M1.6 | Brass | Steel - Zinc Plated | -30 ░C | 105 ░C | 150 V | Screw - Rising Cage Clamp | 6 A | Green | 1 | Horizontal with Board | 0.1 " | 2.54 mm | 8 | Through Hole |
