TBP02R1 Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

TERMINAL BLOCK, PLUGGABLE, W SCR

Part	Current - IEC	Type	Mounting Type	Termination Style	Number of Positions	Color	Positions Per Level	Material Flammability Rating	Contact Tail Length	Contact Tail Length	Current - UL	Contact Mating Finish	Header Orientation	Insulation Height	Insulation Height	Number of Levels	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Material	Voltage - IEC	Pitch	Pitch	Voltage - UL	Positions Per Level [custom]
Same Sky (Formerly CUI Devices) TBP02R1W-381-12BE	7 A	Header Male Pins Shrouded (4 Side)	Through Hole	Solder	12	Blue	12	UL94 V-0	0.138 in	3.5 mm	8 A	Tin	90° Right Angle	7.21 mm	0.284 in	1	-40 C	105 ░C	Mating Flange	Copper Alloy	250 V	3.81 mm	0.15 in	300 V
Same Sky (Formerly CUI Devices) TBP02R1-381-07BE	7 A	Header Male Pins Shrouded (4 Side)	Through Hole	Solder	7	Blue		UL94 V-0	0.138 in	3.5 mm	8 A	Tin	90° Right Angle	7.21 mm	0.284 in	1	-40 C	105 ░C		Copper Alloy	250 V	3.81 mm	0.15 in	300 V	7
Same Sky (Formerly CUI Devices) TBP02R1W-381-02BE	7 A	Header Male Pins Shrouded (4 Side)	Through Hole	Solder	2	Blue	2	UL94 V-0	0.138 in	3.5 mm	8 A	Tin	90° Right Angle	7.21 mm	0.284 in	1	-40 C	105 ░C	Mating Flange	Copper Alloy	250 V	3.81 mm	0.15 in	300 V

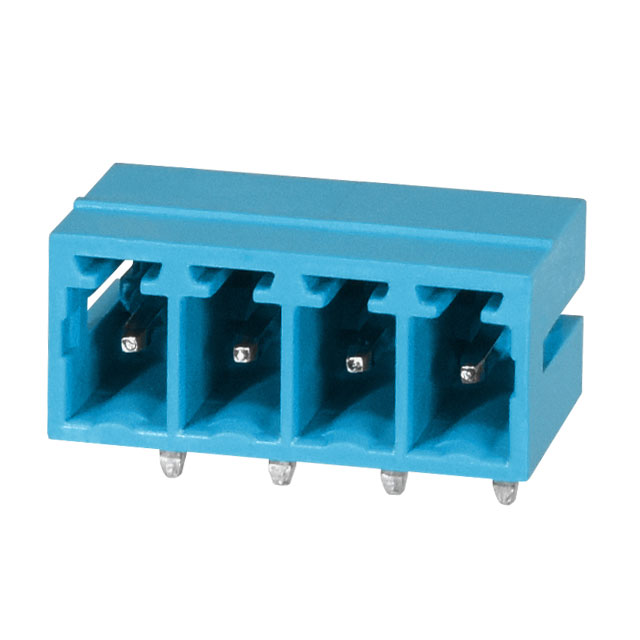

Same Sky (Formerly CUI Devices) TBP02R1-381-04BE	7 A	Header Male Pins Shrouded (4 Side)	Through Hole	Solder	4	Blue	4				8 A	Tin	90° Right Angle			1	-40 C	105 ░C	Notch Guide		250 V	3.81 mm	0.15 in	300 V

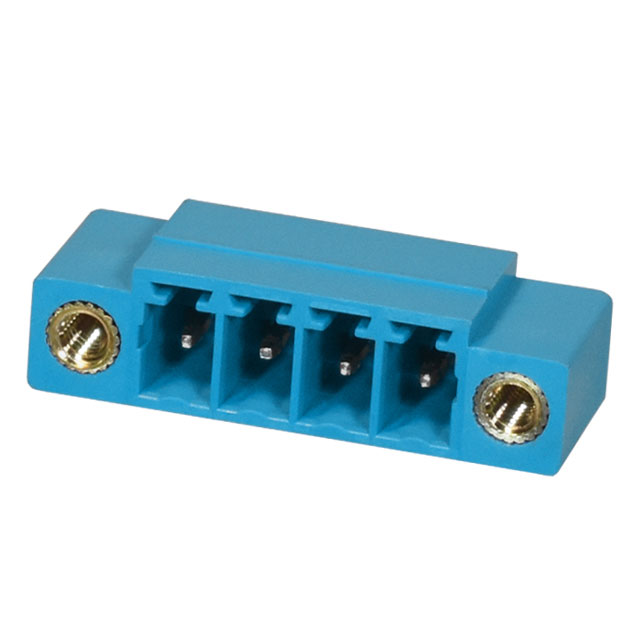

Same Sky (Formerly CUI Devices) TBP02R1W-381-04BE	7 A	Header Male Pins Shrouded (4 Side)	Through Hole	Solder	4	Blue	4	UL94 V-0	0.138 in	3.5 mm	8 A	Tin	90° Right Angle	7.21 mm	0.284 in	1	-40 C	105 ░C	Mating Flange	Copper Alloy	250 V	3.81 mm	0.15 in	300 V
Same Sky (Formerly CUI Devices) TBP02R1-381-05BE	7 A	Header Male Pins Shrouded (4 Side)	Through Hole	Solder	5	Blue	5	UL94 V-0	0.138 in	3.5 mm	8 A	Tin	90° Right Angle	7.21 mm	0.284 in	1	-40 C	105 ░C	Notch Guide	Copper Alloy	250 V	3.81 mm	0.15 in	300 V

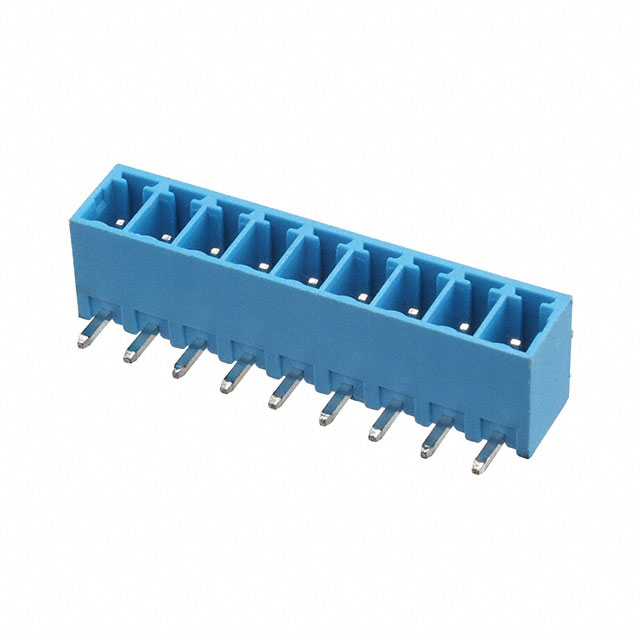

Same Sky (Formerly CUI Devices) TBP02R1-381-09BE	7 A	Header Male Pins Shrouded (4 Side)	Through Hole	Solder	9	Blue	9				8 A	Tin	90° Right Angle			1	-40 C	105 ░C			250 V	3.81 mm	0.15 in	300 V
Same Sky (Formerly CUI Devices) TBP02R1-381-14BE	7 A	Header Male Pins Shrouded (4 Side)	Through Hole	Solder	14	Blue	14				8 A	Tin	90° Right Angle			1	-40 C	105 ░C			250 V	3.81 mm	0.15 in	300 V
Same Sky (Formerly CUI Devices) TBP02R1W-381-08BE	7 A	Header Male Pins Shrouded (4 Side)	Through Hole	Solder	8	Blue	8				8 A	Tin	90° Right Angle			1	-40 C	105 ░C	Mating Flange		250 V	3.81 mm	0.15 in	300 V

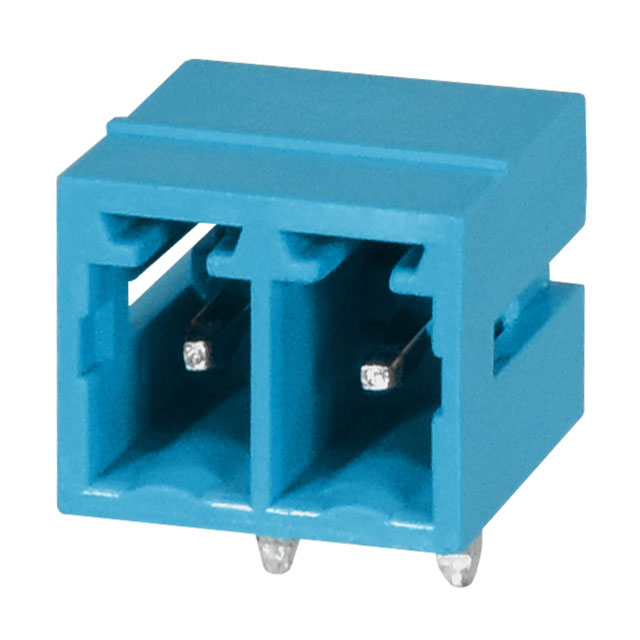

Same Sky (Formerly CUI Devices) TBP02R1-381-02BE	7 A	Header Male Pins Shrouded (4 Side)	Through Hole	Solder	2	Blue	2				8 A	Tin	90° Right Angle			1	-40 C	105 ░C	Notch Guide		250 V	3.81 mm	0.15 in	300 V
