OA92AP Series

Catalog

FAN AXIAL 92X26MM 115VAC TERM

Part	Material - Blade	Material - Frame	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Fan Type	Noise	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Air Flow	Air Flow	Static Pressure	Static Pressure	Termination	Approval Agency	RPM	Weight	Weight	Size / Dimension [y]	Size / Dimension [x]	Bearing Type	Width [y]	Voltage - Rated	Termination	Features	Voltage - Rated [Max]	Voltage - Rated [Min]

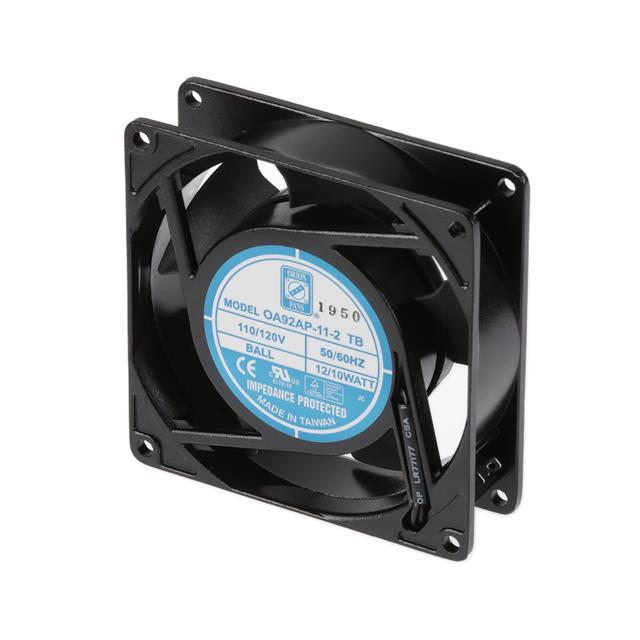

ORION FANS OA92AP-11-2TB	Polybutylene Terephthalate (PBT)	Aluminum	40 °C 60000 Hrs	80 VAC	130 VAC	Tubeaxial	22 dB(A)	10 W	80 °C	-20 ░C	0.756 m³/min	27 CFM	0.14 in H2O	34.9 Pa	2	cURus TUV	2300 RPM	0.644 lb	292.11 g	92 mm	92 mm	Ball	26 mm	115 VAC
ORION FANS OA92AP-22-1WB	Polybutylene Terephthalate (PBT)	Aluminum	40 °C 60000 Hrs	160 VAC	260 VAC	Tubeaxial	30 dB	13 W	80 °C	-20 ░C	0.98 m³/min	35 CFM	0.2 in H2O	49.8 Pa		cURus TUV	3000 RPM	0.644 lb	292.11 g	92 mm	92 mm	Ball	26 mm	230 VAC	2 Wire Leads

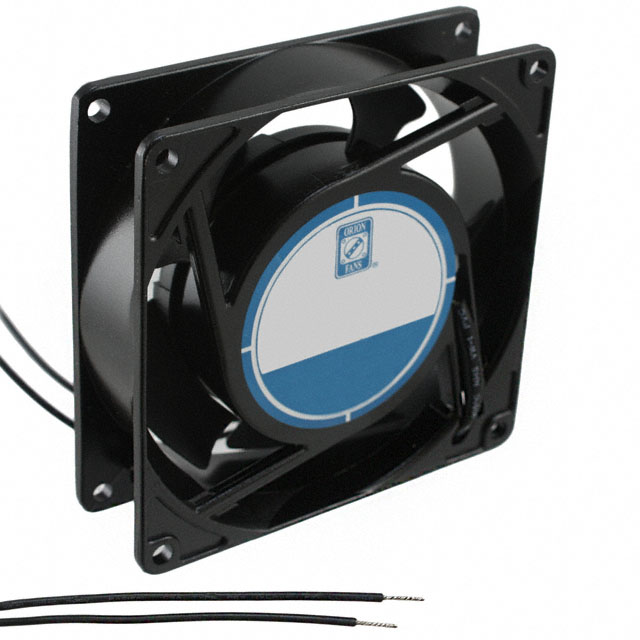

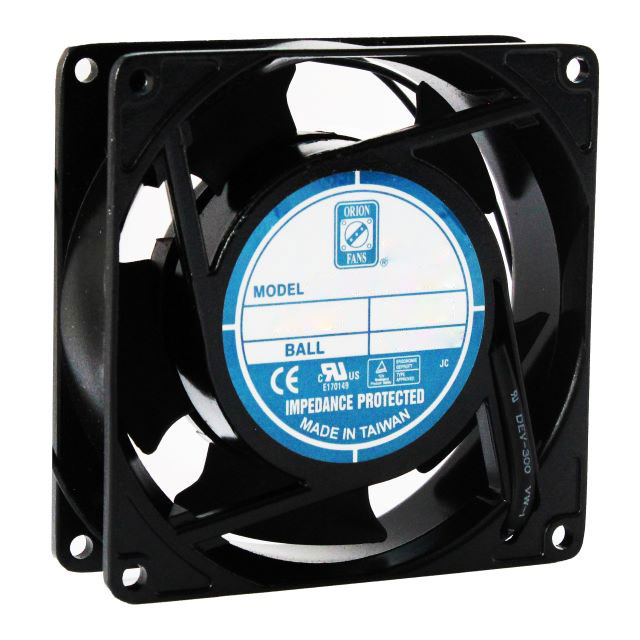

ORION FANS OA92AP-11-1WB	Polybutylene Terephthalate (PBT)	Aluminum	40 °C 60000 Hrs	80 VAC	130 VAC	Tubeaxial	30 dB	13 W	80 °C	-20 ░C	0.98 m³/min	35 CFM	0.2 in H2O	49.8 Pa		cURus TUV	3000 RPM	0.644 lb	292.11 g	92 mm	92 mm	Ball	26 mm	115 VAC	2 Wire Leads
ORION FANS OA92AP-11/22-1WB	Polybutylene Terephthalate (PBT)	Aluminum	40 °C 60000 Hrs	80 VAC	260 VAC	Tubeaxial	30 dB	13 W	80 °C	-20 ░C	0.98 m³/min	35 CFM	0.2 in H2O	49.8 Pa		cURus TUV	3000 RPM			92 mm	92 mm	Ball	26 mm		4 Wire Leads	Dual Voltage	230 VAC	115 VAC
ORION FANS OA92AP-22-1TB	Polybutylene Terephthalate (PBT)	Aluminum	40 °C 60000 Hrs	160 VAC	260 VAC	Tubeaxial	30 dB	13 W	80 °C	-20 ░C	0.98 m³/min	35 CFM	0.2 in H2O	49.8 Pa	2	cURus TUV	3000 RPM	0.644 lb	292.11 g	92 mm	92 mm	Ball	26 mm	230 VAC
ORION FANS OA92AP-11-1TB	Polybutylene Terephthalate (PBT)	Aluminum	40 °C 60000 Hrs	80 VAC	130 VAC	Tubeaxial	30 dB	13 W	80 °C	-20 ░C	0.98 m³/min	35 CFM	0.2 in H2O	49.8 Pa	2	cURus TUV	3000 RPM	0.644 lb	292.11 g	92 mm	92 mm	Ball	26 mm	115 VAC
ORION FANS OA92AP-11-2WB	Polybutylene Terephthalate (PBT)	Aluminum	40 °C 60000 Hrs	80 VAC	130 VAC	Tubeaxial	22 dB(A)	10 W	80 °C	-20 ░C	0.756 m³/min	27 CFM	0.14 in H2O	34.9 Pa		cURus TUV	2300 RPM	0.644 lb	292.11 g	92 mm	92 mm	Ball	26 mm	115 VAC	2 Wire Leads
ORION FANS OA92AP-11-3TB	Polybutylene Terephthalate (PBT)	Aluminum	40 °C 60000 Hrs	80 VAC	130 VAC	Tubeaxial	19 dB(A)	6 W	80 °C	-20 ░C	0.616 m³/min	22 CFM	0.09 in H2O	22.4 Pa	2	cURus TUV	1900 RPM	0.644 lb	292.11 g	92 mm	92 mm	Ball	26 mm	115 VAC
ORION FANS OA92AP-11-3WB	Polybutylene Terephthalate (PBT)	Aluminum	40 °C 60000 Hrs	80 VAC	130 VAC	Tubeaxial	19 dB(A)	6 W	80 °C	-20 ░C	0.616 m³/min	22 CFM	0.09 in H2O	22.4 Pa		cURus TUV	1900 RPM	0.644 lb	292.11 g	92 mm	92 mm	Ball	26 mm	115 VAC	2 Wire Leads
ORION FANS OA92AP-22-2TB						Tubeaxial	22 dB(A)	10 W	80 °C	-20 ░C	0.756 m³/min	27 CFM	0.14 in H2O	34.9 Pa	2	cURus TUV	2300 RPM	0.644 lb	292.11 g	92 mm	92 mm	Ball	26 mm	230 VAC
