PSAD65 Series

Desktop Power Supply 36V 65 Watt

Manufacturer: TT Electronics/BI

Catalog

Desktop Power Supply 36V 65 Watt

Catalog

Desktop Power Supply 36V 65 Watt

Part	Efficiency	Voltage - Input [Max]	Voltage - Input [Min]	Standard Number	Operating Temperature [Min]	Operating Temperature [Max]	Region Utilized	Cord Length	Cord Length	Output Connector [x]	Output Connector [diameter]	Output Connector	Voltage - Output	Power (Watts)	Applications	Form	Current - Output (Max) [Max]	Input Connector	Approval Agency	Size / Dimension	No Load Power Consumption	Input Type	Current - Output (Max)
TT Electronics/BI PSAD65-14-B1	Level VI	264 VAC	90 VAC	60950-1	0 °C	60 °C	International	47 in	1.2 m	10 mm	2.1 mm 5.5 mm	Barrel Plug	24 V	65 W	ITE (Commercial)	Desktop (Class I)	2.7 A	IEC 320-C14	CB CCC CE cULus FCC PSE	1.32 " 1.98 " 4.72 in 33.5 mm 50.3 mm 119.9 mm	210 mW	Cord (Sold Separately)

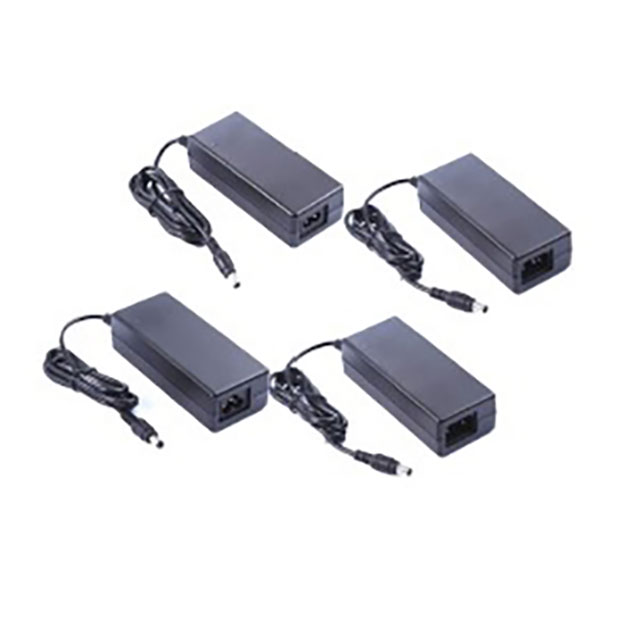

TT Electronics/BI PSAD65-12-B1	Level VI	264 VAC	90 VAC	60950-1	0 °C	60 °C	International	47 in	1.2 m	10 mm	2.1 mm 5.5 mm	Barrel Plug	12 V	60 W	ITE (Commercial)	Desktop (Class I)		IEC 320-C14	CB CCC CE cULus FCC PSE	1.32 " 1.98 " 4.72 in 33.5 mm 50.3 mm 119.9 mm	210 mW	Cord (Sold Separately)	5 A
TT Electronics/BI PSAD65-13-B1	Level VI	264 VAC	90 VAC	60950-1	0 °C	60 °C	International	47 in	1.2 m	10 mm	2.1 mm 5.5 mm	Barrel Plug	15 V	65 W	ITE (Commercial)	Desktop (Class I)	4.33 A	IEC 320-C14	CB CCC CE cULus FCC PSE	1.32 " 1.98 " 4.72 in 33.5 mm 50.3 mm 119.9 mm	210 mW	Cord (Sold Separately)
TT Electronics/BI PSAD65-18-B1	Level VI	264 VAC	90 VAC	60950-1	0 °C	60 °C	International	47 in	1.2 m	10 mm	2.1 mm 5.5 mm	Barrel Plug	48 V	65 W	ITE (Commercial)	Desktop (Class I)	1.35 A	IEC 320-C14	CB CCC CE cULus FCC PSE	1.32 " 1.98 " 4.72 in 33.5 mm 50.3 mm 119.9 mm	210 mW	Cord (Sold Separately)
