TBL002A Series
Manufacturer: Same Sky (Formerly CUI Devices)
Beta
⌘K
TERMINAL BLOCK, SCREWLESS, 3.50,
| Part | Voltage | Number of Levels | Positions Per Level | Wire Termination | Mating Orientation | Mating Orientation | Wire Gauge [Max] | Wire Gauge [Min] | Pitch | Pitch | Mounting Type | Color | Current | Features | Contact Material - Plating | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Same Sky (Formerly CUI Devices) | 300 VDC | 1 | 8 | Screwless - Push Button Clamp | 135 ° | 45 ° | 24 AWG | 19.5 AWG | 3.5 mm | 0.138 " | Kinked Pin Through Hole | Green | 2 A | Interlocking (Side) Push Button Actuated | |||
 Same Sky (Formerly CUI Devices) | 300 VDC | 1 | 3 | Screwless - Push Button Clamp | 135 ° | 45 ° | 24 AWG | 19.5 AWG | 3.5 mm | 0.138 " | Kinked Pin Through Hole | Green | 2 A | Interlocking (Side) Push Button Actuated | Phosphor Bronze - Tin Plated | -40 C | 105 ░C |

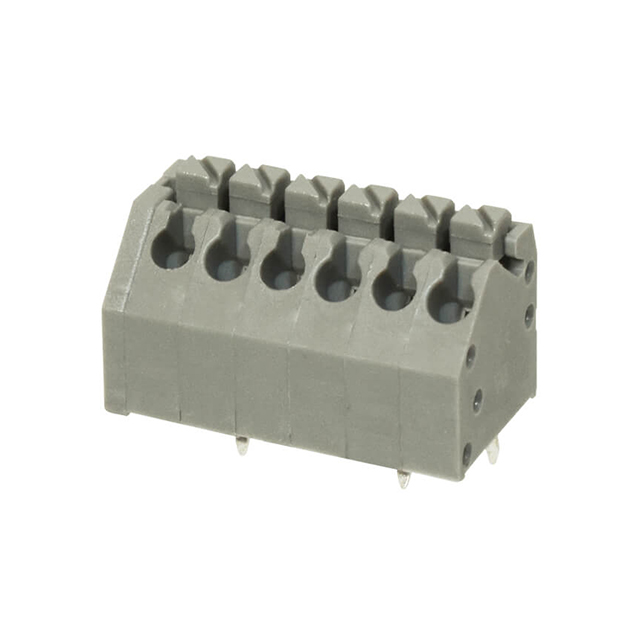

 Same Sky (Formerly CUI Devices) | 300 VDC | 1 | 6 | Screwless - Push Button Clamp | 135 ° | 45 ° | 24 AWG | 19.5 AWG | 3.5 mm | 0.138 " | Kinked Pin Through Hole | Gray | 2 A | Interlocking (Side) Push Button Actuated | |||
 Same Sky (Formerly CUI Devices) | 300 VDC | 1 | 4 | Screwless - Push Button Clamp | 135 ° | 45 ° | 24 AWG | 19.5 AWG | 3.5 mm | 0.138 " | Kinked Pin Through Hole | Green | 2 A | Interlocking (Side) Push Button Actuated | Phosphor Bronze - Tin Plated | -40 C | 105 ░C |
 Same Sky (Formerly CUI Devices) | 300 VDC | 1 | 4 | Screwless - Push Button Clamp | 135 ° | 45 ° | 24 AWG | 19.5 AWG | 3.5 mm | 0.138 " | Kinked Pin Through Hole | Gray | 2 A | Interlocking (Side) Push Button Actuated | |||
 Same Sky (Formerly CUI Devices) | 300 VDC | 1 | 3 | Screwless - Push Button Clamp | 135 ° | 45 ° | 24 AWG | 19.5 AWG | 3.5 mm | 0.138 " | Kinked Pin Through Hole | Gray | 2 A | Interlocking (Side) Push Button Actuated | Phosphor Bronze - Tin Plated | -40 C | 105 ░C |
 Same Sky (Formerly CUI Devices) | 300 VDC | 1 | 2 | Screwless - Push Button Clamp | 135 ° | 45 ° | 24 AWG | 19.5 AWG | 3.5 mm | 0.138 " | Kinked Pin Through Hole | Gray | 2 A | Interlocking (Side) Push Button Actuated | |||

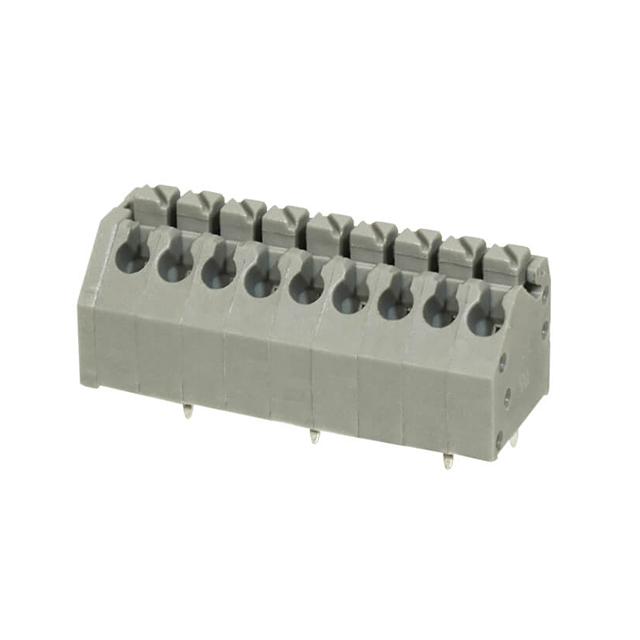

 Same Sky (Formerly CUI Devices) | 300 VDC | 1 | 9 | Screwless - Push Button Clamp | 135 ° | 45 ° | 24 AWG | 19.5 AWG | 3.5 mm | 0.138 " | Kinked Pin Through Hole | Gray | 2 A | Interlocking (Side) Push Button Actuated | |||
Same Sky (Formerly CUI Devices) | 300 VDC | 1 | 2 | Screwless - Push Button Clamp | 135 ° | 45 ° | 24 AWG | 19.5 AWG | 3.5 mm | 0.138 " | Kinked Pin Through Hole | Gray | 2 A | Interlocking (Side) Push Button Actuated | Phosphor Bronze - Tin Plated | -40 C | 105 ░C |
Same Sky (Formerly CUI Devices) | 300 VDC | 1 | 4 | Screwless - Push Button Clamp | 135 ° | 45 ° | 24 AWG | 19.5 AWG | 3.5 mm | 0.138 " | Kinked Pin Through Hole | Green | 2 A | Interlocking (Side) Push Button Actuated |
