ACAG Series
Manufacturer: Abracon LLC
Beta
⌘K
EVAL BOARD LPWA CHIP RF ANT
| Part | Supplied Contents | For Use With/Related Products | Contents | Type | Frequency | Utilized IC / Part | Gain | Termination | Height (Max) [z] | Height (Max) [z] | Frequency Range [Max] | Frequency Range [Min] | VSWR | Antenna Type | Applications | Number of Bands | Mounting Type | Frequency Group | Frequency (Center/Band) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Abracon LLC | Board(s) | ACAG1204-433-T | Board(s) | Antenna | 433 MHz | ACAG1204-433-T | |||||||||||||

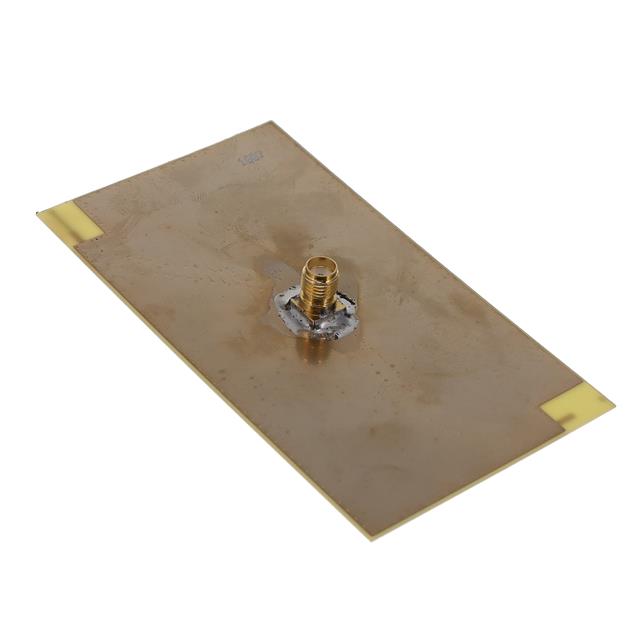

 Abracon LLC | Board(s) | ACAG0801-2450-T | Board(s) | Antenna | 2.45 GHz | ACAG0801-2450-T | |||||||||||||
 Abracon LLC | 4.5 dBic | Solder | 1.2 mm | 0.047 in | 5.85 GHz | 5.15 GHz | 2 | Chip | ISM Wi-Fi WLAN | 1 | Surface Mount | SHF (f > 4GHz) | 5.5 GHz |
