PC16DH Series
Manufacturer: Amphenol Piher Sensing Systems
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
POT 10K OHM 1/5W CARBON LINEAR
| Part | Resistive Material | Bushing Thread Pitch | Bushing Thread | Bushing Thread Diameter | Actuator Diameter | Rotation | Actuator Type | Tolerance | Termination Style | Resistance | Actuator Length | Mounting Type | Number of Turns | Power (Watts) | Power (Watts) Options | Taper | Temperature Coefficient | Built in Switch | Adjustment Type | Number of Gangs | Size - Body Shape | Size - Body Face Width | Size - Body Face Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

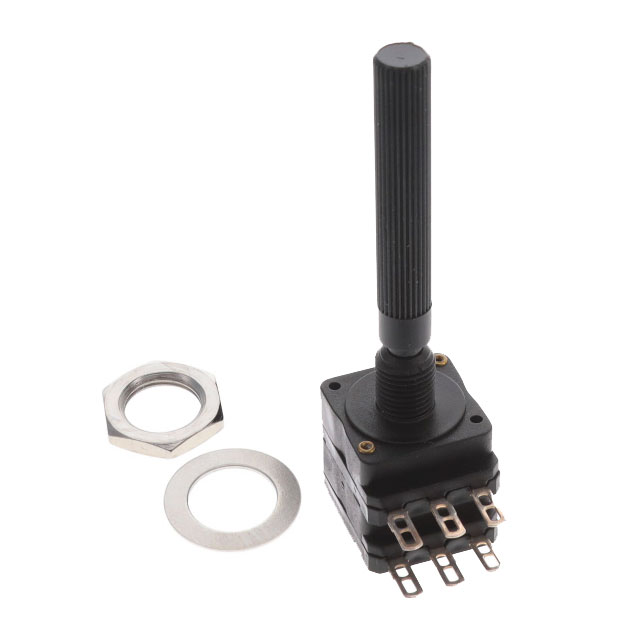

 Amphenol Piher Sensing Systems | Carbon | 0.75 mm | M7 x 0.75 | 7 mm | 0.236 in | 300 ° | Knurled | 20 % | Solder Lug | 10 kOhm | 1.772 in | Panel Mount | 1 turns | 0.2 W | 1/5W | Linear | 300 ppm/°C | None | User Defined | 2 | Rectangular | 0.63 in | 0.709 in |

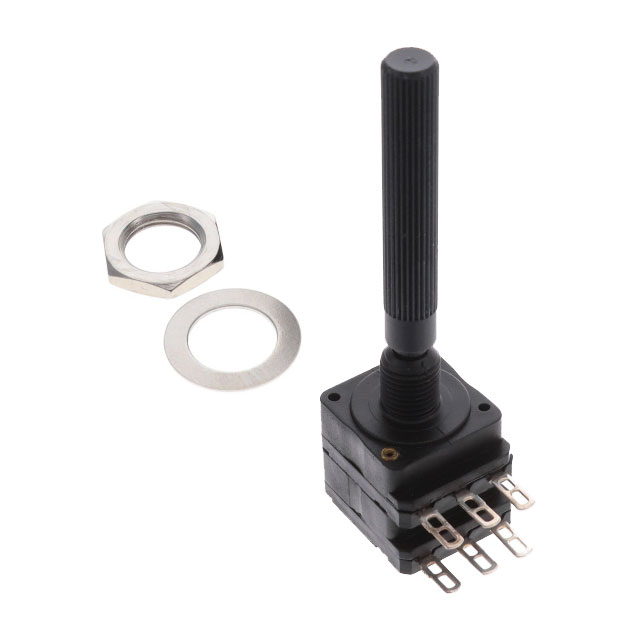

 Amphenol Piher Sensing Systems | Carbon | 0.75 mm | M7 x 0.75 | 7 mm | 0.236 in | 300 ° | Knurled | 20 % | Solder Lug | 100 kOhm | 1.772 in | Panel Mount | 1 turns | 0.2 W | 1/5W | Linear | 300 ppm/°C | None | User Defined | 2 | Rectangular | 0.63 in | 0.709 in |
