UTL71 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN RCPT HSNG F/M 8POS PNL MNT

Part	Connector Type	Shielding	Shell Material	Fastening Type	Contact Size	Material Flammability Rating - Level	Material Flammability Rating	Material Flammability Rating - Code	Insert Material	Operating Temperature (Min)	Operating Temperature (Max)	Contact Shape	Mounting Feature	Shell Size - Insert Length	Shell Size - Insert Width	Contact Type	Orientation	Mounting Type	Position Types	Number of Positions	Type	Note	Ingress Protection IP Rating	Ingress Protection Description	Housing Color	Termination	Applications	Contact Finish - Mating	Contact Finish Thickness - Mating	Color	Contact Material	Primary Material	Features

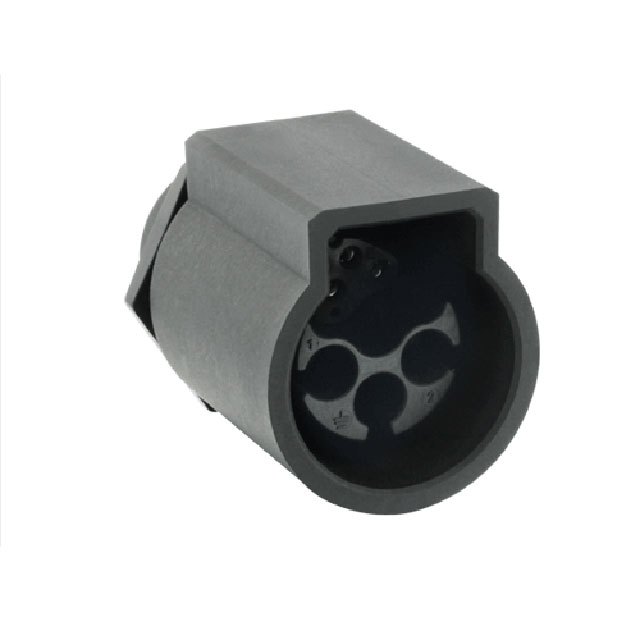

Amphenol Aerospace Operations UTL7122G1W5P	Receptacle Housing	Unshielded	Glass Reinforced Nylon Polyamide (PA)	Latch Lock	16 20	5	UL94 5VA	UL94	Thermoplastic	-40 °C	105 °C	Circular	Bulkhead Rear Side Nut	12 mm	2 mm	Crimp	Keyed	Panel Mount	PE Power	8	For Female Sockets and Male Pins	Contacts Not Included	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Black
Amphenol Aerospace Operations UTL7103G1S20AWG	Female Sockets Male Pins Receptacle	Unshielded	Glass Filled Nylon Polyamide (PA)	Latch Lock		5	UL94 5VA	UL94	Thermoplastic	-40 °C	105 °C		Bulkhead Rear Side Nut	10 mm	3 mm			Panel Mount	PE	4			IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof		Crimp	Industrial	Gold	Flash	Black	Copper Alloy	Plastic	UV Resistant

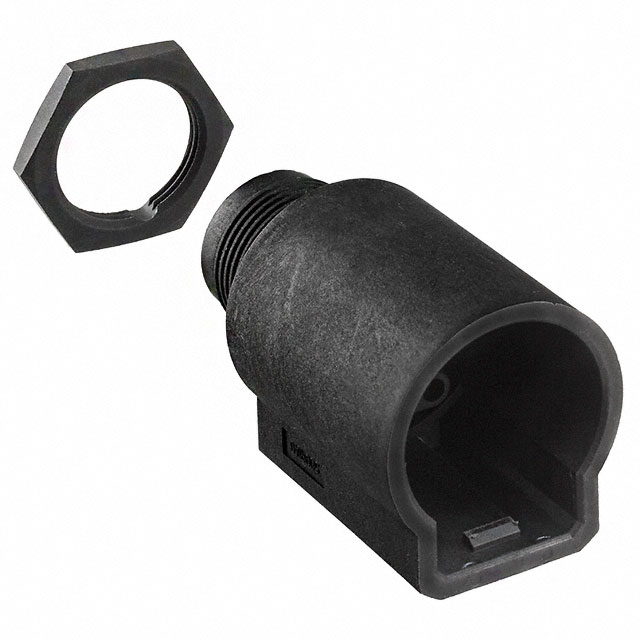

Amphenol Aerospace Operations UTL7102G1W3P	Receptacle Housing	Unshielded	Glass Reinforced Nylon Polyamide (PA)	Latch Lock	16 20	5	UL94 5VA	UL94	Thermoplastic	-40 °C	105 °C	Circular	Bulkhead Rear Side Nut	10 mm	2 mm	Crimp	Keyed	Panel Mount	PE Power	6	For Female Sockets and Male Pins	Contacts Not Included	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Black

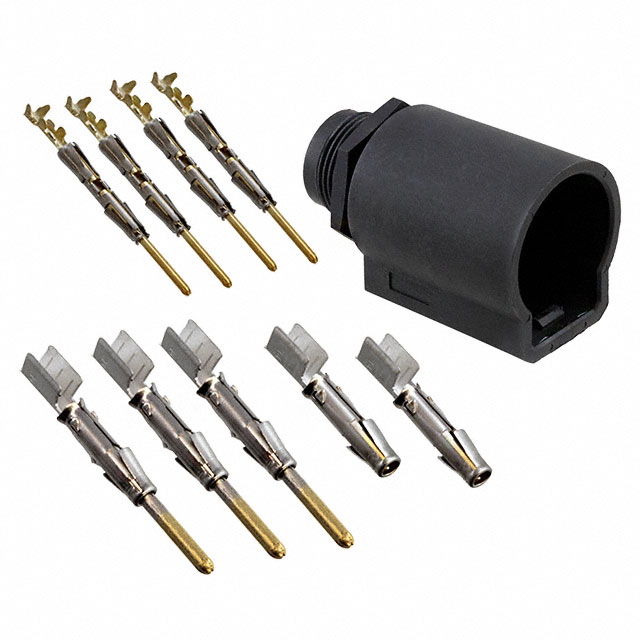

Amphenol Aerospace Operations UTL7102G1W3P16AWG	Female Sockets Male Pins Receptacle	Unshielded	Glass Filled Nylon Polyamide (PA)	Latch Lock		5	UL94 5VA	UL94	Nylon PA Polyamide	-40 °C	105 °C		Bulkhead Rear Side Nut	10 mm	2 mm			Panel Mount	PE Power	6			IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof		Crimp	Industrial	Gold	Flash	Black	Copper Alloy	Plastic	UV Resistant
Amphenol Aerospace Operations UTL7102G1W3P03	Receptacle Housing	Unshielded	Glass Reinforced Nylon Polyamide (PA)	Latch Lock	16 20	5	UL94 5VA	UL94	Thermoplastic	-40 °C	105 °C	Circular	Bulkhead Rear Side Nut	10 mm	2 mm	Crimp	Keyed	Panel Mount	PE Power	6	For Female Sockets and Male Pins	Contacts Not Included	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Gray

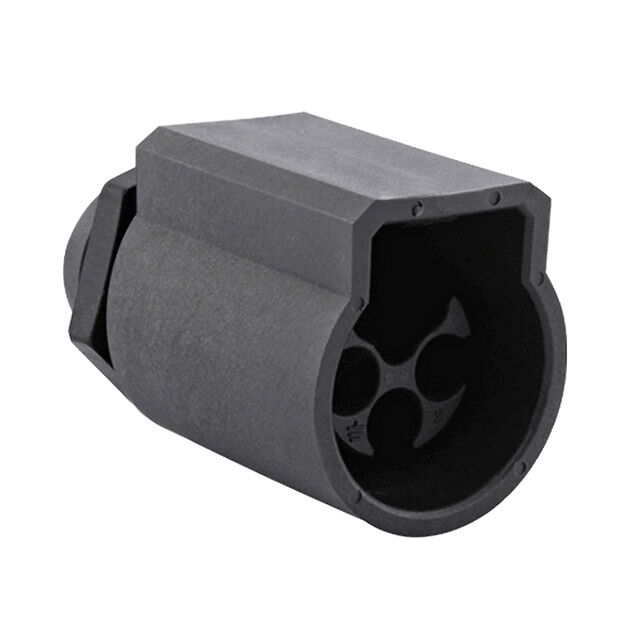

Amphenol Aerospace Operations UTL7102G1W3S	Receptacle Housing	Unshielded	Glass Reinforced Nylon Polyamide (PA)	Latch Lock	16 20	5	UL94 5VA	UL94	Thermoplastic	-40 °C	105 °C	Circular	Bulkhead Rear Side Nut	10 mm	2 mm	Crimp	Keyed	Panel Mount	PE Power	6	For Female Sockets and Male Pins	Contacts Not Included	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Black

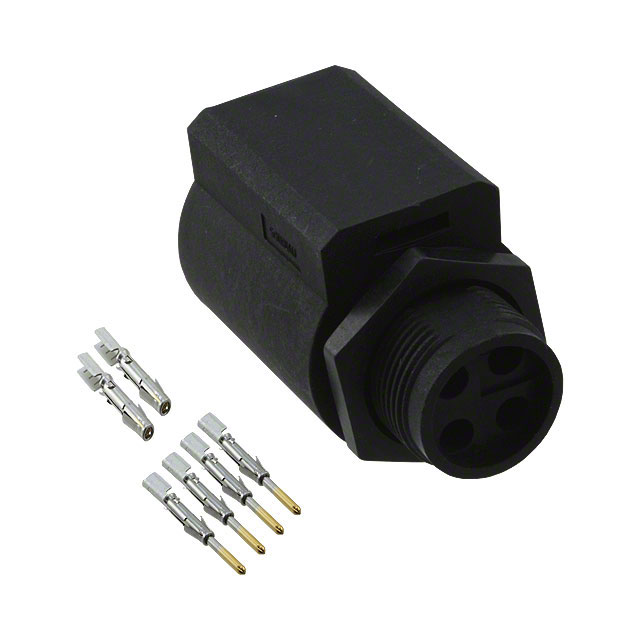

Amphenol Aerospace Operations UTL7103G1P16AWG	Female Sockets Male Pins Receptacle	Unshielded	Glass Filled Nylon Polyamide (PA)	Latch Lock		5	UL94 5VA	UL94	Thermoplastic	-40 °C	105 °C		Bulkhead Rear Side Nut	10 mm	3 mm			Panel Mount	PE	4			IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof		Crimp	Industrial	Gold	Flash	Black	Copper Alloy	Plastic	UV Resistant

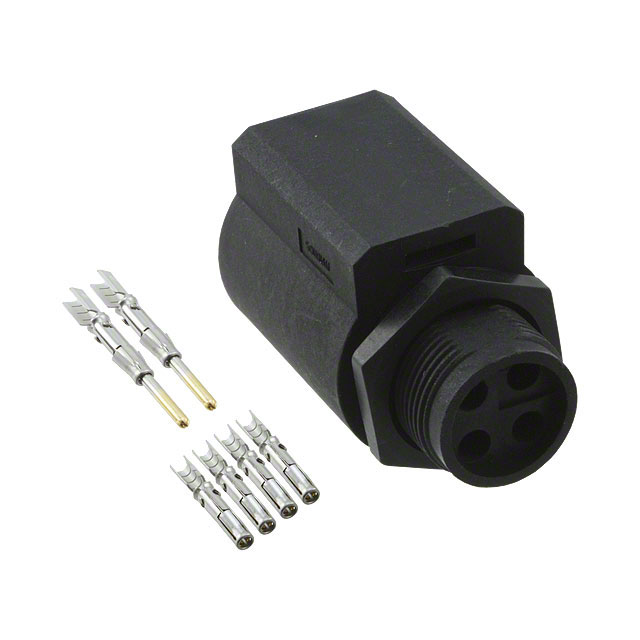

Amphenol Aerospace Operations UTL7103G1S16AWG	Female Sockets Male Pins Receptacle	Unshielded	Glass Filled Nylon Polyamide (PA)	Latch Lock		5	UL94 5VA	UL94	Thermoplastic	-40 °C	105 °C		Bulkhead Rear Side Nut	10 mm	3 mm			Panel Mount	PE	4			IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof		Crimp	Industrial	Gold	Flash	Black	Copper Alloy	Plastic	UV Resistant

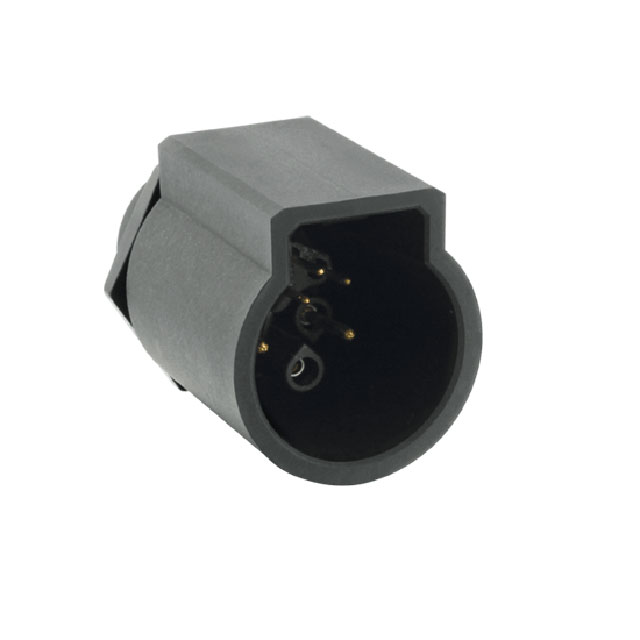

Amphenol Aerospace Operations UTL7122G1W5S	Receptacle Housing	Unshielded	Glass Reinforced Nylon Polyamide (PA)	Latch Lock	16 20	5	UL94 5VA	UL94	Thermoplastic	-40 °C	105 °C	Circular	Bulkhead Rear Side Nut	12 mm	2 mm	Crimp	Keyed	Panel Mount	PE Power	8	For Female Sockets and Male Pins	Contacts Not Included	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Black

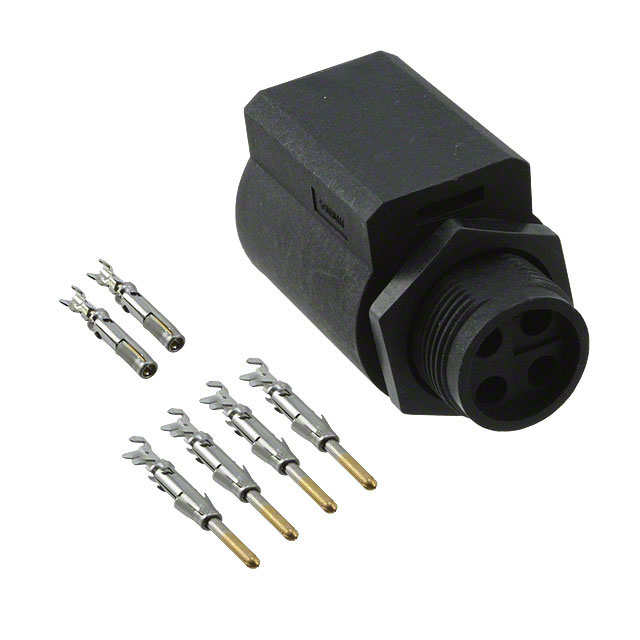

Amphenol Aerospace Operations UTL7103G1P20AWG	Female Sockets Male Pins Receptacle	Unshielded	Glass Filled Nylon Polyamide (PA)	Latch Lock		5	UL94 5VA	UL94	Thermoplastic	-40 °C	105 °C		Bulkhead Rear Side Nut	10 mm	3 mm			Panel Mount	PE	4			IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof		Crimp	Industrial	Gold	Flash	Black	Copper Alloy	Plastic	UV Resistant
