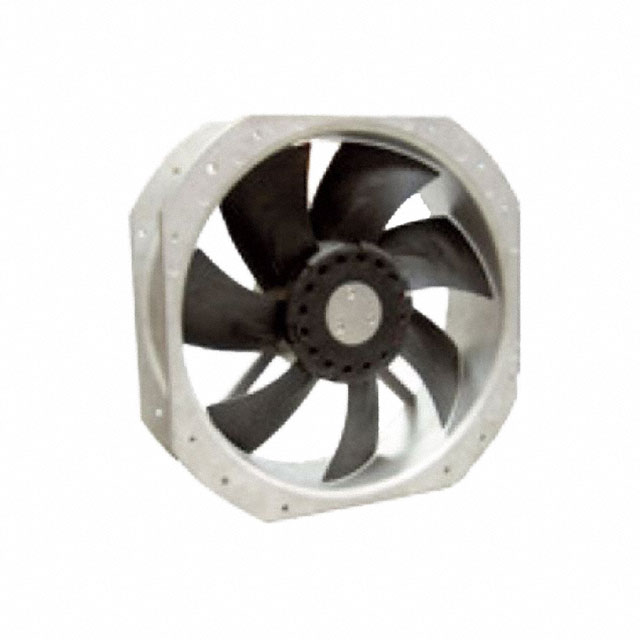

OD280 Series

Catalog

FAN AXIAL 280X89MM 48VDC WIRE

Part	Material - Frame	Lifetime @ Temp.	Voltage Range [Max]	Voltage Range [Min]	Material - Blade	Operating Temperature [Max]	Operating Temperature [Min]	Static Pressure	Static Pressure	Voltage - Rated	Size / Dimension [y]	Size / Dimension [x]	Noise	Width [y]	RPM	Fan Type	Power (Watts)	Termination	Bearing Type	Approval Agency	Air Flow	Air Flow
ORION FANS OD280-48MB	Aluminum	85000 Hrs	55 VDC	24 VDC	Thermoplastic Fiberglass Reinforced	65 °C	-15 °C	0.65 in H2O	161.9 Pa	48 VDC	280 mm	280 mm	56 dB	89 mm	2200 RPM	Tubeaxial	60 W	2 Wire Leads	Ball	cURus TUV	29.68 m³/min	1060 CFM
ORION FANS OD280AN-48HB	Aluminum	85000 Hrs	55 VDC	24 VDC	Thermoplastic Fiberglass Reinforced	65 °C	-15 °C	0.9 in H2O	224.2 Pa	48 VDC	280 mm	280 mm	72 dB(A)	89 mm	2550 RPM	Tubeaxial	104 W	2 Wire Leads	Ball	cURus TUV	33.6 mł/min	1200 CFM
ORION FANS OD280-12HB	Aluminum	85000 Hrs	13.5 VDC	9 V	Thermoplastic Fiberglass Reinforced	65 °C	-15 °C	0.9 in H2O	224.2 Pa	12 VDC	280 mm	280 mm	72 dB(A)	89 mm	2550 RPM	Tubeaxial		2 Wire Leads	Ball	cURus TUV	33.6 mł/min	1200 CFM
ORION FANS OD280-12MB	Aluminum	85000 Hrs	13.5 VDC	9 V	Thermoplastic Fiberglass Reinforced	65 °C	-15 °C	0.65 in H2O	161.9 Pa	12 VDC	280 mm	280 mm	56 dB	89 mm	2200 RPM	Tubeaxial	90 W	2 Wire Leads	Ball	cURus TUV	29.68 m³/min	1060 CFM
ORION FANS OD280-24HB	Aluminum	85000 Hrs	27 VDC	18 VDC	Thermoplastic Fiberglass Reinforced	65 °C	-15 °C	0.9 in H2O	224.2 Pa	24 VDC	280 mm	280 mm	72 dB(A)	89 mm	2550 RPM	Tubeaxial	104 W	2 Wire Leads	Ball	cURus TUV	33.6 mł/min	1200 CFM
ORION FANS OD280-24MB	Aluminum	85000 Hrs	27 VDC	18 VDC	Thermoplastic Fiberglass Reinforced	65 °C	-15 °C	0.65 in H2O	161.9 Pa	24 VDC	280 mm	280 mm	56 dB	89 mm	2200 RPM	Tubeaxial	60 W	2 Wire Leads	Ball	cURus TUV	29.68 m³/min	1060 CFM
