LT3066 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

IC REG LINEAR 5V 500MA 12DFN

Part	Package / Case	Voltage Dropout (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Current - Quiescent (Iq)	Current - Output	Voltage - Input (Max) [Max]	Mounting Type	PSRR	Number of Regulators	Current - Supply (Max) [Max]	Voltage - Output (Min/Fixed)	Supplier Device Package	Output Configuration	Protection Features	Control Features	Voltage - Output (Max) [Max]	Output Type	Package / Case [y]	Package / Case [x]
Analog Devices Inc./Maxim Integrated LT3066EDE-5	12-WFDFN Exposed Pad	0.51 V	125 °C	-40 C	125 µA	500 mA	45 V	Surface Mount	70 dB	1	25 mA	5 V	12-DFN (4x3)	Positive	Over Current Over Temperature Reverse Polarity	Current Limit Enable Power Good Soft Start
Analog Devices Inc./Maxim Integrated LT3066EDE#TRPBF	12-WFDFN Exposed Pad	0.51 V	125 °C	-40 C	125 µA	500 mA	45 V	Surface Mount	85 dB	1	25 mA	0.6 V	12-DFN (4x3)	Positive	Over Current Over Temperature Reverse Polarity	Current Limit Enable Power Good Soft Start	19 V	Adjustable

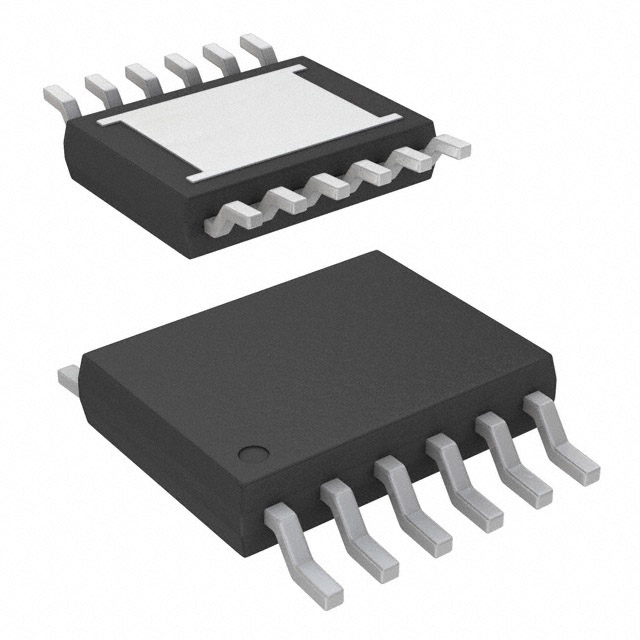

Analog Devices Inc./Maxim Integrated LT3066IMSE-5#PBF	12-TSSOP Exposed Pad	0.51 V	125 °C	-40 C	125 µA	500 mA	45 V	Surface Mount	70 dB	1	25 mA	5 V	12-MSOP-EP	Positive	Over Current Over Temperature Reverse Polarity	Current Limit Enable Power Good Soft Start			3 mm	0.118 in
Analog Devices Inc./Maxim Integrated LT3066IDE#TRPBF	12-WFDFN Exposed Pad	0.51 V	125 °C	-40 C	125 µA	500 mA	45 V	Surface Mount	85 dB	1	25 mA	0.6 V	12-DFN (4x3)	Positive	Over Current Over Temperature Reverse Polarity	Current Limit Enable Power Good Soft Start	19 V	Adjustable
Analog Devices Inc./Maxim Integrated LT3066EMSE-3.3#PBF	12-TSSOP Exposed Pad	0.51 V	125 °C	-40 C	125 µA	500 mA	45 V	Surface Mount	71 dB	1	25 mA	3.3 V	12-MSOP-EP	Positive	Over Current Over Temperature Reverse Polarity	Current Limit Enable Power Good Soft Start			3 mm	0.118 in
Analog Devices Inc./Maxim Integrated LT3066IDE-5#TRPBF	12-WFDFN Exposed Pad	0.51 V	125 °C	-40 C	125 µA	500 mA	45 V	Surface Mount	70 dB	1	25 mA	5 V	12-DFN (4x3)	Positive	Over Current Over Temperature Reverse Polarity	Current Limit Enable Power Good Soft Start
Analog Devices Inc./Maxim Integrated LT3066EMSE-5#TRPBF	12-TSSOP Exposed Pad	0.51 V	125 °C	-40 C	125 µA	500 mA	45 V	Surface Mount	70 dB	1	25 mA	5 V	12-MSOP-EP	Positive	Over Current Over Temperature Reverse Polarity	Current Limit Enable Power Good Soft Start			3 mm	0.118 in
Analog Devices Inc./Maxim Integrated LT3066EMSE-5#PBF	12-TSSOP Exposed Pad	0.51 V	125 °C	-40 C	125 µA	500 mA	45 V	Surface Mount	70 dB	1	25 mA	5 V	12-MSOP-EP	Positive	Over Current Over Temperature Reverse Polarity	Current Limit Enable Power Good Soft Start			3 mm	0.118 in
Analog Devices Inc./Maxim Integrated LT3066IMSE-3.3#TRPBF	12-TSSOP Exposed Pad	0.51 V	125 °C	-40 C	125 µA	500 mA	45 V	Surface Mount	71 dB	1	25 mA	3.3 V	12-MSOP-EP	Positive	Over Current Over Temperature Reverse Polarity	Current Limit Enable Power Good Soft Start			3 mm	0.118 in
Analog Devices Inc./Maxim Integrated LT3066IDE-3.3#PBF	12-WFDFN Exposed Pad	0.51 V	125 °C	-40 C	125 µA	500 mA	45 V	Surface Mount	71 dB	1	25 mA	3.3 V	12-DFN (4x3)	Positive	Over Current Over Temperature Reverse Polarity	Current Limit Enable Power Good Soft Start
