SS-32 Series

Catalog

16-14 AWG NYLON INSULATED W/INSULATION GRIP LOCKING FORK TERMI

Part	Length - Ring Center to Termination [custom]	Length - Ring Center to Termination [custom]	Length - Termination [custom]	Length - Termination [custom]	Material - Insulation	Wire Gauge [Min]	Wire Gauge [Max]	Mounting Type	Insulation	Contact Finish	Width - Outer Edges [x]	Width - Outer Edges [x]	Length - Overall [x]	Length - Overall [x]	Stud/Tab Size	Color	Terminal Type	Termination	Length - Termination [x]	Length - Termination [x]	Features	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Width - Outer Edges	Width - Outer Edges
3M Electronic Specialty SS-32-4-NB	6.35 mm	0.25 "	0.46 in	11.68 mm	Nylon Polyamide (PA)	14 AWG	16 AWG	Free Hanging (In-Line)	Insulated	AuCoNiP	6.35 mm	0.25 "	22.61 mm	0.89 in	4 Stud	Blue	Snap Spring	Crimp
3M Electronic Specialty SS-32-10	6.35 mm	0.25 "				14 AWG	16 AWG	Free Hanging (In-Line)	Non-Insulated		8.13 mm	0.32 in	17.27 mm	0.68 "	10 Stud		Snap Spring	Crimp	0.25 in	6.35 mm	Butted Seam

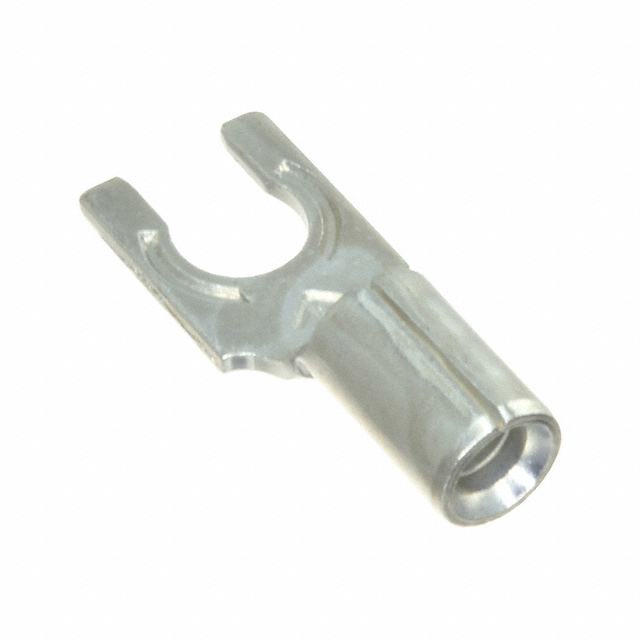

3M Electronic Specialty SS-32-6	6.35 mm	0.25 "				14 AWG	16 AWG	Free Hanging (In-Line)	Non-Insulated		6.35 mm	0.25 "	17.27 mm	0.68 "	6 Stud		Snap Spring	Crimp	0.25 in	6.35 mm	Butted Seam
3M Electronic Specialty SS-32-14						14 AWG	16 AWG	Free Hanging (In-Line)	Non-Insulated				22.86 mm	0.9 "	0.25 Stud		Snap Spring	Crimp	0.25 in	6.35 mm	Butted Seam	0.4 "	10.16 mm	0.43 in	10.92 mm
3M Electronic Specialty SS-32-4-P	6.35 mm	0.25 "			Vinyl	14 AWG	16 AWG	Free Hanging (In-Line)	Insulated		6.35 mm	0.25 "	22.35 mm	0.88 in	4 Stud	Blue	Snap Spring	Crimp	0.45 in	11.43 mm	Butted Seam
