WXA Series

Manufacturer: Rubycon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED GENERAL PURPOSE ELECTROLYTIC CAPACITORS

Part	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Lead Spacing	Lead Spacing	Mounting Type	Voltage - Rated	Lifetime @ Temp.	Applications	Capacitance	Tolerance	Ratings	Ripple Current @ High Frequency	Polarization	Ripple Current @ Low Frequency	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Rubycon 6.3WXA680MEFC8X9	Can Radial	0.315 in	8 mm	0.413 "	10.5 mm	-55 C	105 ░C	0.138 in	3.5 mm	Through Hole	6.3 VDC	2000 Hrs	Automotive	680 µF	20 %	AEC-Q200	360 mA	Polar	300 mA
Rubycon 400WXA47MEFC18X20	Can Radial	0.709 in	18 mm			-25 °C	105 ░C	0.295 in	7.5 mm	Through Hole	400 V	2000 Hrs	Automotive	47 µF	20 %	AEC-Q200	463.5 mA	Polar	309 mA	0.866 in	22 mm
Rubycon 35WXA1000MEFC16X16	Can Radial	0.63 in	16 mm			-55 C	105 ░C	0.295 in	7.5 mm	Through Hole	35 V	2000 Hrs	Automotive	1000 µF	20 %	AEC-Q200	1.02 A	Polar	850 mA			17.5 mm	0.689 in
Rubycon 250WXA33MEFC16X16	Can Radial	0.63 in	16 mm			-40 C	105 ░C	0.295 in	7.5 mm	Through Hole	250 V	2000 Hrs	Automotive	33 ÁF	20 %	AEC-Q200	357 mA	Polar	238 mA			17.5 mm	0.689 in

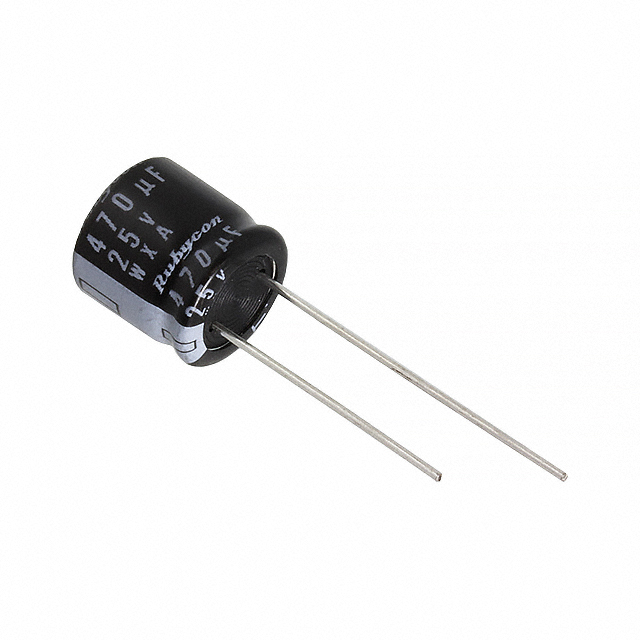

Rubycon 25WXA470MEFC10X9	Can Radial	0.394 in	10 mm	0.413 "	10.5 mm	-55 C	105 ░C	0.197 "	5 mm	Through Hole	25 VDC	2000 Hrs	Automotive	470 µF	20 %	AEC-Q200	444 mA	Polar	370 mA
