ECX-CD Series
Manufacturer: ECS Inc.
Beta
⌘K

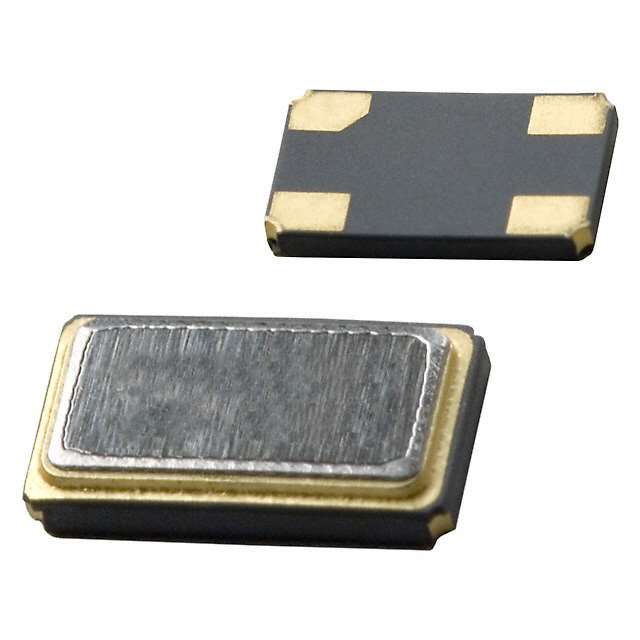

CRYSTAL 12.0000MHZ 9PF SMD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Frequency | Supplier Device Package | Load Capacitance | Operating Mode | ESR (Equivalent Series Resistance) | Frequency Stability | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Package / Case | Type | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ECS Inc. | -20 ░C | 70 °C | 12 MHz | 4-SMD (6x3.5) | 9 pF | Fundamental | 40 Ohms | 20 ppm | 0.236 in | 6 mm | 0.138 in | 3.5 mm | 4-SMD No Lead | MHz Crystal | 0.043 " | 1.1 mm | Surface Mount |
