0ZCJ Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K

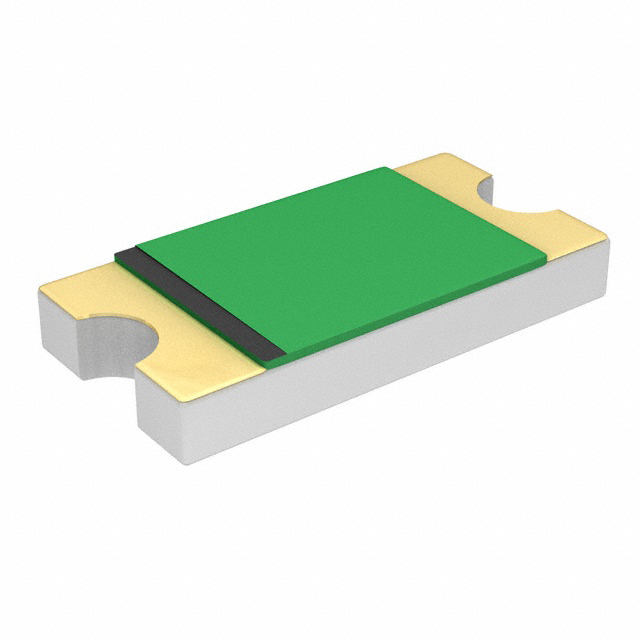

PTC RESET FUSE 48V 160MA 1206
| Part | Approval Agency | Package / Case | Qualification | Grade | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Resistance - Initial (Ri) (Min) [Min] | Thickness (Max) [Max] | Thickness (Max) [Max] | Current - Trip (It) | Type | Operating Temperature [Max] | Operating Temperature [Min] | Current - Max [Max] | Mounting Type | Voltage - Max [Max] | Current - Hold (Ih) (Max) [Max] | Time to Trip | Resistance - Post Trip (R1) (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | AEC-Q200 cURus TUV | 1206 (3216 Metric) Concave | AEC-Q200 | Automotive | 3.25 mm | 0.065 in | 0.128 in | 1.65 mm | 1.1 Ohms | 0.75 mm | 0.03 in | 450 mA | Polymeric | 85 °C | -40 C | 10 A | Surface Mount | 48 V | 160 mA | 0.3 s | |
 Bel Fuse Inc. | 1206 (3216 Metric) Concave | AEC-Q200 | Automotive | 3.25 mm | 0.065 in | 0.128 in | 1.65 mm | 3.6 Ohms | 0.85 mm | 0.033 in | 150 mA | Polymeric | 85 °C | -40 C | 10 A | Surface Mount | 60 V | 50 mA | 1.5 s | 50 Ohms |
