16980-7S Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

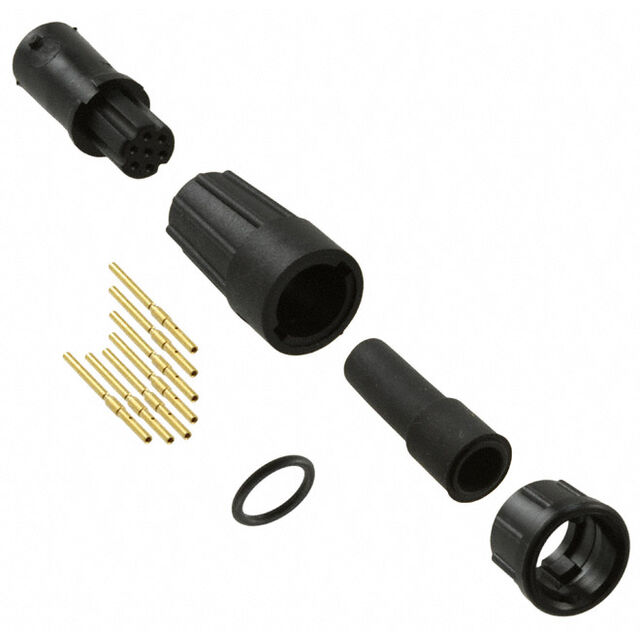

CONN PLUG FMALE 7POS GOLD CRIMP
| Part | Termination | Contact Material | Color | Current Rating (Amps) | Fastening Type | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Primary Material | Ingress Protection | Backshell Material, Plating | Features | Applications | Connector Type | Contact Finish - Mating | Orientation | Material Flammability Rating | Mounting Type | Shielding | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SWITCHCRAFT/CONXALL | Crimp | Copper Alloy | Black | 3.5 A | Bayonet Lock | 7 | 85 °C | -40 C | 600 VAC | Plastic | IP67 - Dust Tight Waterproof | Thermoplastic | Backshell | Data Industrial Instrumentation Medical | Plug Female Sockets | Gold | B | UL94 HB | Free Hanging (In-Line) | Unshielded | ||||
 SWITCHCRAFT/CONXALL | Crimp | Copper Alloy | Black | 3.5 A | Bayonet Lock | 7 | 85 °C | -40 C | 600 VAC | Plastic | IP67 - Dust Tight Waterproof | Thermoplastic | Backshell | Data Industrial Instrumentation Medical | Plug Female Sockets | Gold | B | UL94 HB | Free Hanging (In-Line) | Unshielded | 5.59 mm | 5.84 mm | 0.23 in | 0.22 in |
