EKMZ Series
Manufacturer: Chemi-Con
Beta
⌘K

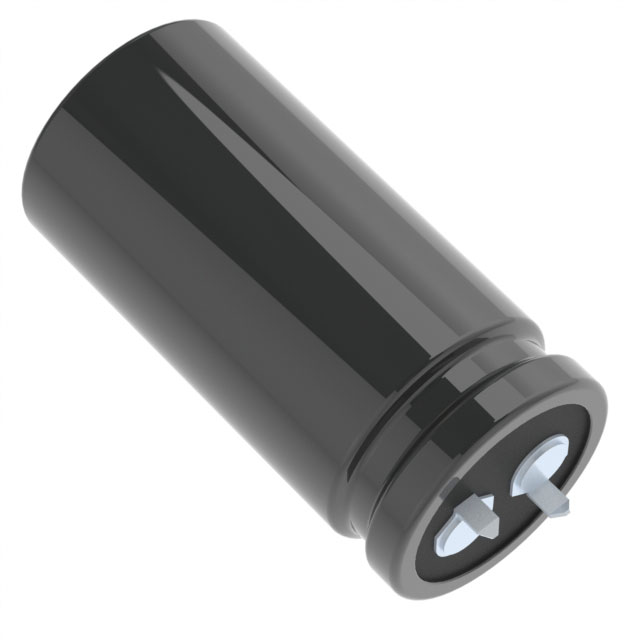

ALUMINUM ELECTROLYTIC CAPACITORS - SNAP IN 470UF 420V 20% 25.4X50
| Part | Ripple Current @ Low Frequency | Voltage - Rated | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Capacitance | Tolerance | Applications | Package / Case | Size / Dimension [diameter] | Size / Dimension [diameter] | Lead Spacing | Lead Spacing | Ripple Current @ High Frequency | Polarization | Lifetime @ Temp. | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Size / Dimension | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Chemi-Con | 1.86 A | 420 V | 2.067 in | 52.5 mm | 470 µF | 20 % | General Purpose | Radial Can - Snap-In | 25.4 mm | 1 " | 0.394 in | 10 mm | 2.6598 A | Polar | 2000 Hrs | -40 C | 105 ░C | Through Hole | |||
 Chemi-Con | 1.63 A | 420 V | 2.264 " | 57.5 mm | 390 µF | 20 % | General Purpose | Radial Can - Snap-In | 22 mm | 0.866 " | 0.394 in | 10 mm | 2.3309 A | Polar | 2000 Hrs | -40 C | 105 ░C | Through Hole | |||
 Chemi-Con | 2.25 A | 450 V | 2.067 in | 52.5 mm | 680 µF | 20 % | General Purpose | Radial Can - Snap-In | 1.181 " | 0.394 in | 10 mm | 3.2175 A | Polar | 2000 Hrs | -40 C | 105 ░C | Through Hole | 30 mm | |||
 Chemi-Con | 1.64 A | 420 V | 390 µF | 20 % | General Purpose | Radial Can - Snap-In | 25.4 mm | 1 " | 0.394 in | 10 mm | 2.3452 A | Polar | 2000 Hrs | -40 C | 105 ░C | Through Hole | 42.5 mm | 1.673 in |
