BPJF03 Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

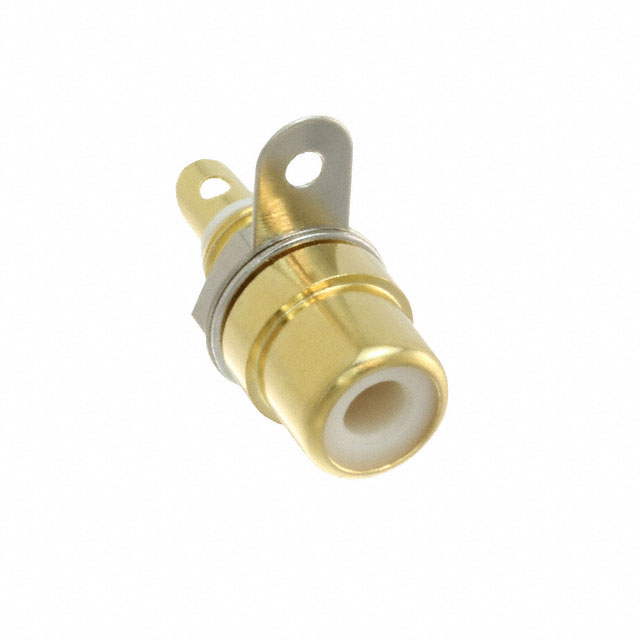

CONN RCA JACK MONO 3.2MM PNL MT
| Part | Panel Hole Size | Panel Hole Size | Includes | Thread Size | Thread Size | Body Material | Body Color | Contact Material | Contact Material - Plating | Shielding | Mounting Type | Insulation Color | Signal Lines | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Connector Type | Features | Internal Switch(s) | Industry Recognized Mating Diameter [diameter] | Termination | Actual Diameter [diameter] | Actual Diameter [diameter] | Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | 0.402 in | 10.2 mm | 1 Nut 1 Washer 3 pcs - 1 Connector | 32 threads per inch | 1/4" | Brass | Silver | Brass | Nickel | Unshielded | Panel Mount | White | Mono | 2 | 2 | Phono (RCA) Jack | Grounding Tab Mounting Hardware | 3.2 mm 9 mm | Solder Eyelet(s) | 0.134 in 0.325 in | 3.4 mm 8.25 mm | Female | |
 SWITCHCRAFT/CONXALL | 0.402 in | 10.2 mm | 1 Nut 1 Washer 3 pcs - 1 Connector | 32 threads per inch | 1/4" | Brass | Silver | Brass | Gold | Unshielded | Panel Mount | White | Mono | 2 | 2 | Phono (RCA) Jack | Grounding Tab Mounting Hardware | 3.2 mm 9 mm | Solder Eyelet(s) | 0.134 in 0.325 in | 3.4 mm 8.25 mm | Female |
