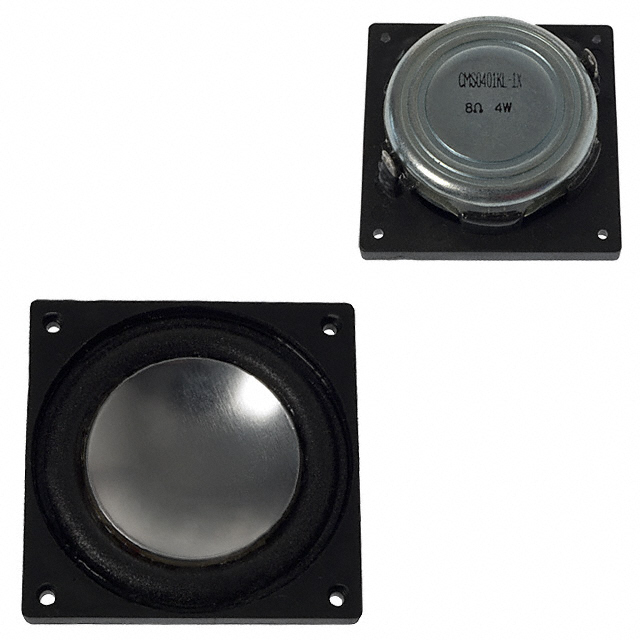

CMS0401 Series
Manufacturer: Same Sky (Formerly CUI Devices)
Beta
⌘K
SPEAKERS NEODYMIUM IRON BORON 430HZ 6W 87DBA 8OHM SQUARE SOLDER LUG
| Part | Efficiency - Testing | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Port Location | Impedance | Type | Termination | Efficiency - dBA | Material - Magnet | Technology | Shape | Power - Rated | Frequency - Self Resonant | Power - Max [Max] | Efficiency - Type | Material - Cone |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Same Sky (Formerly CUI Devices) | 1W/500mm | 0.571 " | 14.5 mm | 1.579 in | 40.1 mm | 40.1 mm | 1.579 " | Top | 8 Ohms | General Purpose | Solder Eyelet(s) | 87 dBA | Nd-Fe-B | Magnetic | Round Square Frame | 4 W | 320 Hz | 6 W | Sound Pressure Level (SPL) | Polyester Polyethylene Terephthalate (PET) |
Same Sky (Formerly CUI Devices) | 1W/500mm | 0.571 " | 14.5 mm | 1.579 in | 40.1 mm | 40.1 mm | 1.579 " | Top | 8 Ohms | General Purpose | Solder Eyelet(s) | 87 dBA | Nd-Fe-B | Magnetic | Round Square Frame | 4 W | 320 Hz | 6 W | Sound Pressure Level (SPL) | Polyester Polyethylene Terephthalate (PET) |
