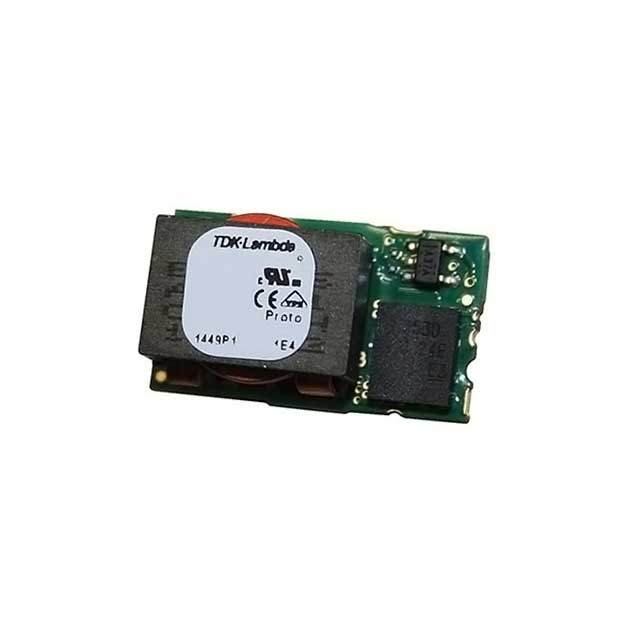

IBH12020 Series
Manufacturer: TDK Corporation
Beta
⌘K
NON ISOLATED POL DC/DC CONVERTER, ITE, DOSA, 80 W, 700 MV, 5.5 V, 20 A
| Part | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Current - Output (Max) [Max] | Number of Outputs | Efficiency | Package / Case | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Control Features | Mounting Type | Features | Type | Applications | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | 20.3 mm | 0.8 " | 11.4 mm | 0.39 " | 0.45 in | 9.9 mm | 5.5 V | 0.7 V | 20 A | 1 | 96 % | 9-SMD Module | 14 V | 3.5 V | Active Low Enable | Surface Mount | Remote On/Off | Non-Isolated PoL Module Digital | ITE (Commercial) | 115 °C | -40 C |
