PJRAS1 Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

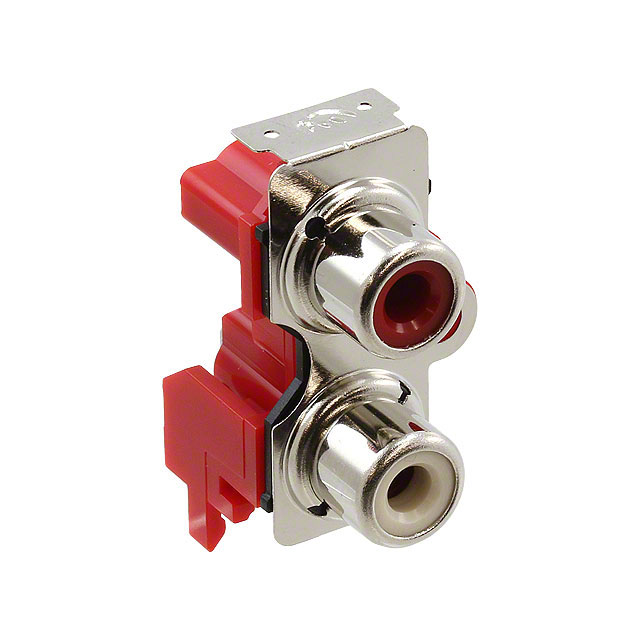

1 HORIZONTAL BY 2 VERTICAL POSITION RCA PCB MOUNT RCA JACK, SCREW MOUNTING HOLE, SHIELDED, WHITE/ RED
| Part | Housing Material | Contact Material - Plating | Body Color | Current Rating (Amps) | Voltage - Rated | Body Material | Contact Material | Industry Recognized Mating Diameter [diameter] | Number of Positions/Contacts | Gender | Mounting Type | Features | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Signal Lines | Connector Type | Internal Switch(s) | Shielding | Insulation Color | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Acrylonitrile Butadiene Styrene (ABS) | Tin | Black Silver | 2 A | 34 VAC/DC | Copper Alloy | Copper Alloy | 3.2 mm 9 mm | 2 3 | Female | Right Angle Through Hole | Grounding Tab | Solder | 85 °C | -25 °C | Mono | Phono (RCA) Jack | Shielded | Red White | ||||
 SWITCHCRAFT/CONXALL | Acrylonitrile Butadiene Styrene (ABS) | Tin | Red Silver | 2 A | 34 VAC/DC | Copper Alloy | Copper Alloy | 3.2 mm 9 mm | Female | Right Angle Through Hole | Grounding Tab | Solder | 85 °C | -25 °C | Mono | Phono (RCA) Jack | Shielded | Red White Yellow | 5 | 3 | |||
 SWITCHCRAFT/CONXALL | Acrylonitrile Butadiene Styrene (ABS) | Tin | Black Silver | 2 A | 34 VAC/DC | Copper Alloy | Copper Alloy | 3.2 mm 9 mm | 2 3 | Female | Right Angle Through Hole | Grounding Tab | Solder | 85 °C | -25 °C | Mono | Phono (RCA) Jack | Shielded | Red White | ||||
 SWITCHCRAFT/CONXALL | Acrylonitrile Butadiene Styrene (ABS) | Gold | Black Gold | 2 A | 34 VAC/DC | Copper Alloy | Copper Alloy | 3.2 mm 9 mm | 2 3 | Female | Right Angle Through Hole | Grounding Tab | Solder | 85 °C | -25 °C | Mono | Phono (RCA) Jack | Shielded | Red White | ||||
 SWITCHCRAFT/CONXALL | Acrylonitrile Butadiene Styrene (ABS) | Gold | Gold Yellow | 2 A | 34 VAC/DC | Copper Alloy | Copper Alloy | 3.2 mm 9 mm | Female | Right Angle Through Hole | Grounding Tab | Solder | 85 °C | -25 °C | Mono | Phono (RCA) Jack | Shielded | Yellow | 3 | 2 | |||
 SWITCHCRAFT/CONXALL | Acrylonitrile Butadiene Styrene (ABS) | Tin | Black Silver | 2 A | 34 VAC/DC | Copper | Copper Alloy | 3.2 mm 9 mm | Female | Right Angle Through Hole | Grounding Tab | Solder | 85 °C | -25 °C | Mono | Phono (RCA) Jack | Shielded | Black | 3 | 2 | |||
 SWITCHCRAFT/CONXALL | Acrylonitrile Butadiene Styrene (ABS) | Tin | Silver White | 2 A | 34 VAC/DC | Copper | Copper Alloy | 3.2 mm 9 mm | Female | Right Angle Through Hole | Grounding Tab | Solder | 85 °C | -25 °C | Mono | Phono (RCA) Jack | Shielded | White | 3 | 2 |
