MP70 Series

Catalog

ROUTER LTE-A NA & EMEA DC

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Modulation or Protocol	Applications	Power - Output	Data Rate (Max) [Max]	Frequency	Interface	Sensitivity	Frequency
Semtech Corporation MP70_1102709	36 V	7 V	Cellular HSPA+ LTE WCDMA	General Purpose	21 dBm	300 Mbps	1.8 GHz 1.9 GHz 2.1 GHz 2.6 GHz 700 MHz 800 MHz 850 MHz 900 MHz	Ethernet RJ-45 RS-232 USB	-162 dBm
Semtech Corporation MP70_1102743	36 V	7 V	Cellular HSPA+ LTE WCDMA	General Purpose	21 dBm	300 Mbps	1.8 GHz 1.9 GHz 2.1 GHz 2.6 GHz 700 MHz 800 MHz 850 MHz 900 MHz	Ethernet RJ-45 RS-232 USB	-162 dBm
Semtech Corporation MP70_1104072	36 V	7 V	Cellular HSPA+ LTE WCDMA	General Purpose	21 dBm	600 Mbps	1.5 GHz 1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 2.3 GHz 2.6 GHz 700 MHz 800 MHz 850 MHz 900 MHz	Ethernet RJ-45 RS-232 USB	-162 dBm
Semtech Corporation MP70_1104074	36 V	7 V	Cellular HSPA+ LTE WCDMA	General Purpose	21 dBm	600 Mbps	1.5 GHz 1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 2.3 GHz 2.6 GHz 700 MHz 800 MHz 850 MHz 900 MHz	Ethernet RJ-45 RS-232 USB	-162 dBm
Semtech Corporation MP70_1102713	36 V	7 V	Cellular HSPA+ LTE WCDMA	General Purpose	21 dBm	300 Mbps		Ethernet RJ-45 RS-232 USB	-162 dBm	1.5GHz 1.7GHz 1.8GHz 2.1GHz 700MHz 800MHz 850MHz 900MHz

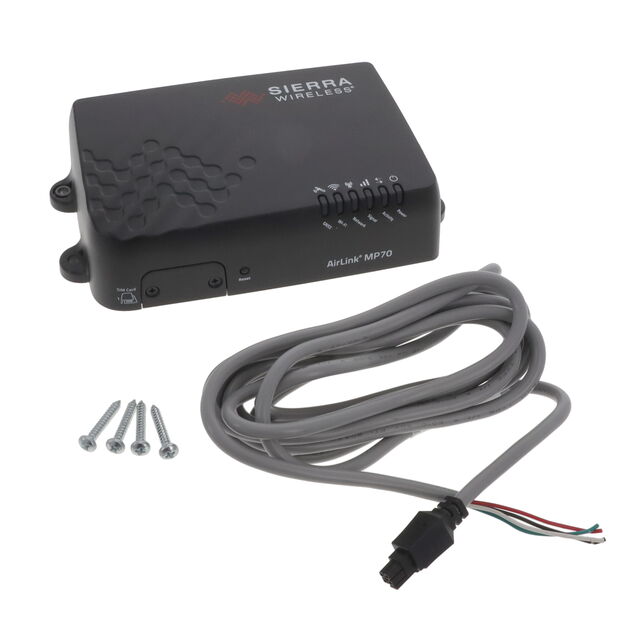

Semtech Corporation MP70_1104073	36 V	7 V	Cellular HSPA+ LTE WCDMA	General Purpose	21 dBm	50 Mbps	1.5 GHz 1.7 GHz 1.8 GHz 1.9 GHz 2.6 GHz 700 MHz 800 MHz 850 MHz 900 MHz	Ethernet RJ-45 RS-232 USB	-162 dBm
Semtech Corporation MP70_1102745	36 V	7 V	Cellular HSPA+ LTE WCDMA	General Purpose	21 dBm	300 Mbps		Ethernet RJ-45 RS-232 USB	-162 dBm	1.5GHz 1.7GHz 1.8GHz 2.1GHz 700MHz 800MHz 850MHz 900MHz

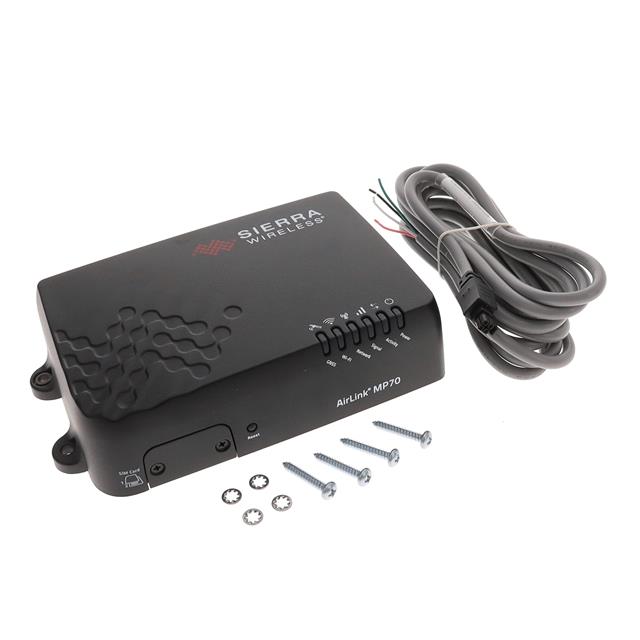

Semtech Corporation MP70_1104071	36 V	7 V	Cellular HSPA+ LTE WCDMA	General Purpose	21 dBm	50 Mbps	1.5 GHz 1.7 GHz 1.8 GHz 1.9 GHz 2.6 GHz 700 MHz 800 MHz 850 MHz 900 MHz	Ethernet RJ-45 RS-232 USB	-162 dBm
