RP109 Series
Manufacturer: Nisshinbo Micro Devices Inc.
Beta
⌘K
IC REG LINEAR 1.9V 150MA SOT23-5
| Part | Current - Quiescent (Iq) | Voltage - Input (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Dropout (Max) [Max] | Supplier Device Package | Current - Output | Control Features | Package / Case | Voltage - Output (Min/Fixed) [Min] | Output Configuration | Number of Regulators | Mounting Type | Protection Features | PSRR | Voltage - Output (Min/Fixed) | Voltage Dropout (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nisshinbo Micro Devices Inc. | 70 µA | 5.25 V | 85 C | -40 ¯C | 0.48 V | SOT-23-5 | 150 mA | Enable | SC-74A SOT-753 | 1.9 V | Positive | 1 | Surface Mount | Over Current | 75 dB | ||

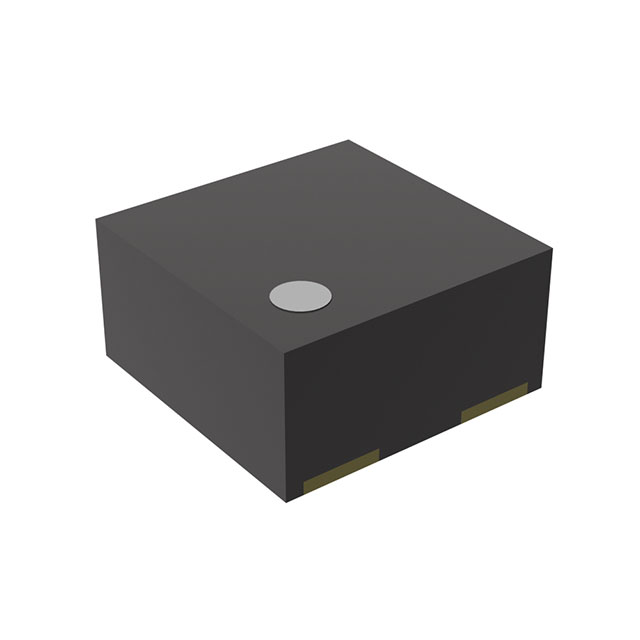

 Nisshinbo Micro Devices Inc. | 70 µA | 5.25 V | 85 C | -40 ¯C | 0.82 V | DFN(PL)0808-4 | 150 mA | Enable | 4-XFDFN Exposed Pad | Positive | 1 | Surface Mount | Over Current | 75 dB | 1.1 V | ||

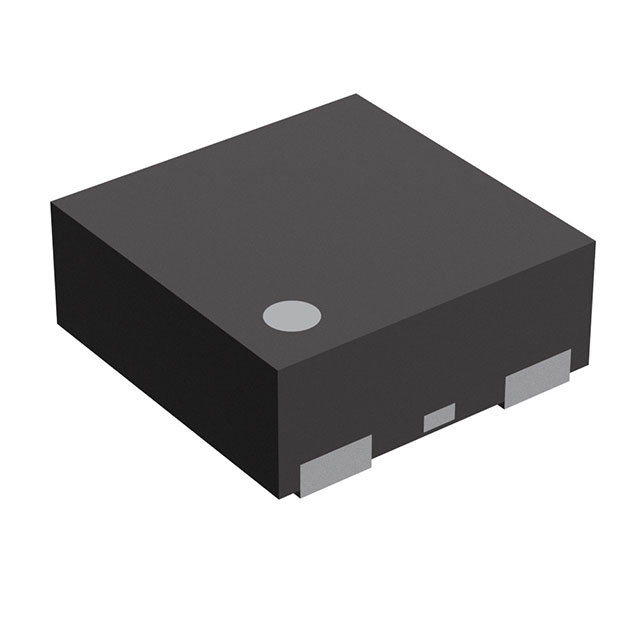

 Nisshinbo Micro Devices Inc. | 70 µA | 5.25 V | 85 C | -40 ¯C | 0.35 V | DFN1010-4 | 150 mA | Enable | 4-XDFN Exposed Pad | 2.6 V | Positive | 1 | Surface Mount | Over Current | 75 dB | ||
Nisshinbo Micro Devices Inc. | 70 µA | 5.25 V | 85 C | -40 ¯C | 0.35 V | DFN1010-4 | 150 mA | Enable | 4-XDFN Exposed Pad | 2.9 V | Positive | 1 | Surface Mount | Over Current | 75 dB | ||
Nisshinbo Micro Devices Inc. | 70 µA | 5.25 V | 85 C | -40 ¯C | DFN1010-4 | 150 mA | Enable | 4-XDFN Exposed Pad | 1.4 V | Positive | 1 | Surface Mount | Over Current | 75 dB | 0.54 V | ||
Nisshinbo Micro Devices Inc. | 70 µA | 5.25 V | 85 C | -40 ¯C | 0.4 V | DFN(PL)0808-4 | 150 mA | Enable | 4-XFDFN Exposed Pad | Positive | 1 | Surface Mount | Over Current | 75 dB | 2.2 V | ||
Nisshinbo Micro Devices Inc. | 70 µA | 5.25 V | 85 C | -40 ¯C | DFN(PL)0808-4 | 150 mA | Enable | 4-XFDFN Exposed Pad | Positive | 1 | Surface Mount | Over Current | 75 dB | 0.8 V | 1 V | ||
 Nisshinbo Micro Devices Inc. | 70 µA | 5.25 V | 85 C | -40 ¯C | 0.35 V | SC-88A | 150 mA | Enable | 5-TSSOP SC-70-5 SOT-353 | Positive | 1 | Surface Mount | Over Current | 75 dB | 2.8 V | ||
Nisshinbo Micro Devices Inc. | 70 µA | 5.25 V | 85 C | -40 ¯C | 0.4 V | SOT-23-5 | 150 mA | Enable | SC-74A SOT-753 | Positive | 1 | Surface Mount | Over Current | 75 dB | 2.2 V | ||
Nisshinbo Micro Devices Inc. | 70 µA | 5.25 V | 85 C | -40 ¯C | 0.82 V | DFN1010-4 | 150 mA | Enable | 4-XDFN Exposed Pad | Positive | 1 | Surface Mount | Over Current | 75 dB | 1.1 V |
