12166 Series
Manufacturer: APEM Inc.
Beta
⌘K

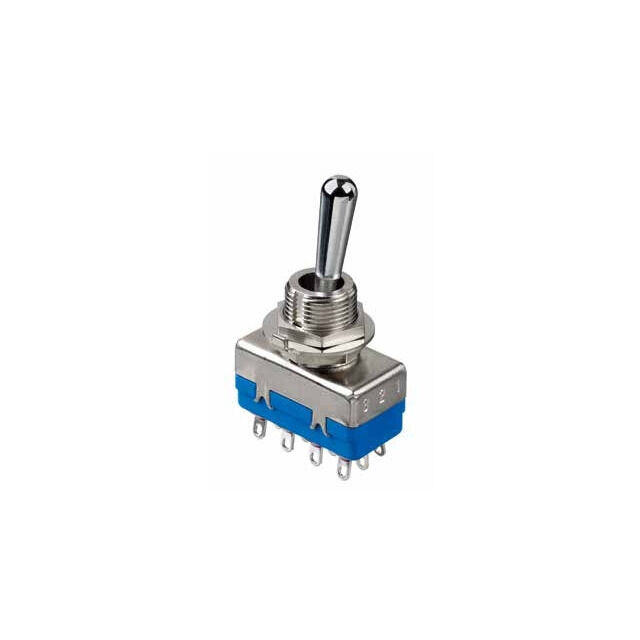

TOGGLE SWITCH 12000 HIGH SPEC ROHS COMPLIANT: YES
| Part | Actuator Material | Electrical Life | Actuator Type | Voltage Rating - AC | Actuator Length [x] | Bushing Thread | Panel Cutout Dimensions [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Circuit | Current Rating (Amps) | Voltage Rating - DC | Termination Style | Features | Mounting Type | Illumination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 APEM Inc. | Brass Nickel Plated | 50000 Cycles | Standard Round | 125 V | 17.3 mm | 15/32-32 | 12.5 mm | 85 °C | -40 C | On-On | 4PDT | 4 A | 30 V | Solder Lug | Epoxy Sealed Terminals | Panel Mount | Non-Illuminated |
 APEM Inc. | Brass Nickel Plated | 10000 Cycles | Standard Round | 17.3 mm | 15/32-32 | 12 mm | 85 °C | -40 C | On-On | 4PDT | 3 A | 60 VDC | Solder Lug | Epoxy Sealed Terminals Front Panel Sealing | Panel Mount | Non-Illuminated |
