CUT35 Series

Switching Power Supplies 35.4W 5V 3A/12V 1.2A /-12V 0.85A Cover

Manufacturer: TDK Corporation

Catalog

Switching Power Supplies 35.4W 5V 3A/12V 1.2A /-12V 0.85A Cover

Catalog

Switching Power Supplies 35.4W 5V 3A/12V 1.2A /-12V 0.85A Cover

Part	Minimum Load Required	Current - Output 1	Type	Mounting Type	Current - Output 3	Power (Watts)	Features	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output 2	Voltage - Output 2	Approval Agency	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Isolation	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output 1	Voltage - Output 3	Efficiency

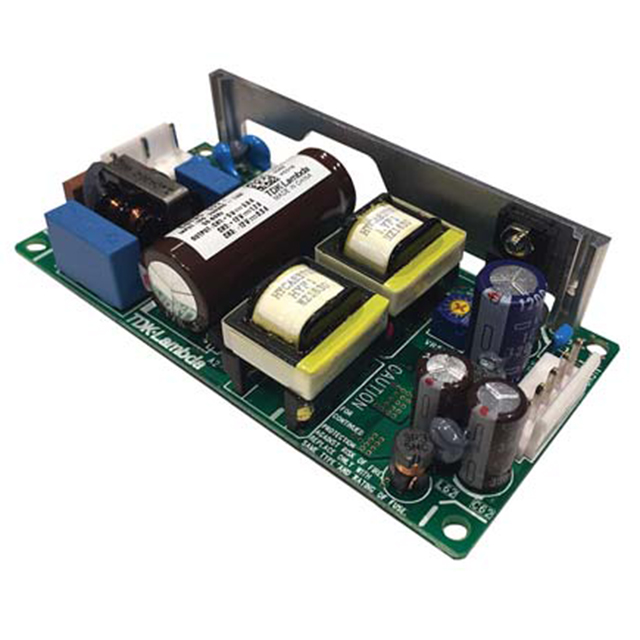

TDK Corporation CUT35-5FF		3 A	Open Frame	Chassis Mount	650 mA	35 W	DC Input Capable Universal Input	3	70 °C	-20 °C	1 A	15 V	CE	ITE (Commercial) Medical	2 in	4 "	50.8 mm	101.6 mm	1.06 in	27 mm	3000 V	265 VAC	85 VAC	5 V	-15 V
TDK Corporation CUT35-5FF/B		3 A	Open Frame	Chassis Mount	650 mA	35 W	Baseplate DC Input Capable Universal Input	3	70 °C	-20 °C	1 A	15 V	CE	ITE (Commercial) Medical	2.22 "	4.8 in	56.5 mm	122 mm	1.1 in	28 mm	3000 V	265 VAC	85 VAC	5 V	-15 V
TDK Corporation CUT35-522/B		3 A	Open Frame	Chassis Mount	850 mA	35 W	Baseplate DC Input Capable Universal Input	3	70 °C	-20 °C	1.2 A	12 V	CE	ITE (Commercial) Medical	2.22 "	4.8 in	56.5 mm	122 mm	1.1 in	28 mm	3000 V	265 VAC	85 VAC	5 V	-12 V	81 %

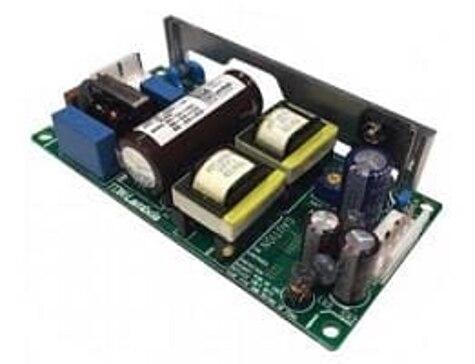

TDK Corporation CUT35-522/A		3 A	Enclosed	Chassis Mount	850 mA	35 W	DC Input Capable Universal Input	3	60 °C	-20 °C	1.2 A	12 V	CE	ITE (Commercial) Medical	2.48 in	4.92 in	63.1 mm	125 mm	1.42 "	36 mm	3000 V	265 VAC	85 VAC	5 V	-12 V	81 %

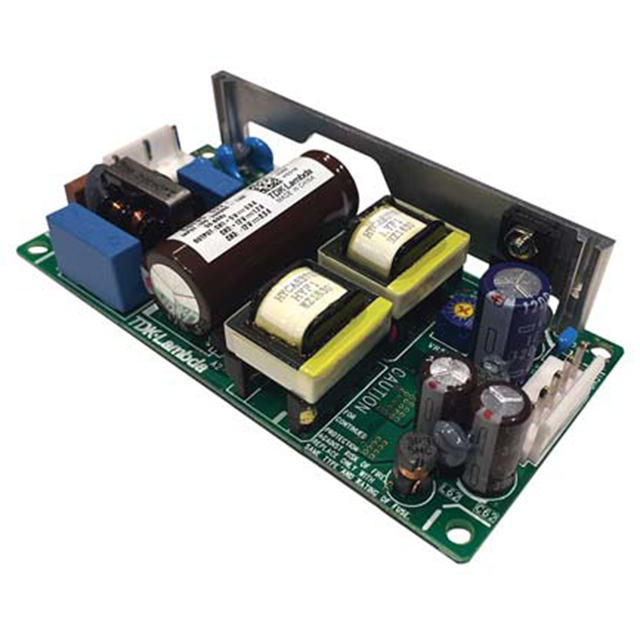

TDK Corporation CUT35-522		3 A	Open Frame	Chassis Mount	850 mA	35 W	DC Input Capable Universal Input	3	70 °C	-20 °C	1.2 A	12 V	CE	ITE (Commercial) Medical	2 in	4 "	50.8 mm	101.6 mm	1.06 in	27 mm	3000 V	265 VAC	85 VAC	5 V	-12 V	81 %
