IMP7Z Series

Manufacturer: APEM Inc.

Catalog

SWITCH PUSHBUTTON SPDT 3A 28V

Part	Mechanical Life	Electrical Life	Voltage Rating - DC	Mounting Type	Ingress Protection	Current Rating (Amps)	Actuator Marking	Panel Cutout Dimensions [diameter]	Termination Style	Features	Type	Switch Function	Actuator Type	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap
APEM Inc. IMP7Z472075	1000000 Cycles	25000 Steps	28 V	Panel Mount Front	IP67 - Dust Tight Waterproof	3 A	No Marking	13.6 mm	Quick Connect - 0.110" (2.8mm)	Epoxy Sealed Terminals	Standard	On-Mom	Button Round	SPDT	85 °C	-40 C	White
APEM Inc. IMP7Z452	1000000 Cycles	25000 Steps	28 V	Panel Mount Front	IP67 - Dust Tight Waterproof	3 A	No Marking	13.6 mm	Quick Connect - 0.110" (2.8mm)	Epoxy Sealed Terminals	Standard	On-Mom	Button Round	SPDT	85 °C	-40 C	Yellow
APEM Inc. IMP7Z432104	1000000 Cycles	25000 Steps	28 V	Panel Mount Front	IP67 - Dust Tight Waterproof	3 A	No Marking	13.6 mm	Quick Connect - 0.110" (2.8mm)	Epoxy Sealed Terminals	Standard	On-Mom	Button Round	SPDT	85 °C	-40 C	Green
APEM Inc. IMP7Z422234	1000000 Cycles	25000 Steps	28 V	Panel Mount Front	IP67 - Dust Tight Waterproof	3 A	No Marking	13.6 mm	Quick Connect - 0.110" (2.8mm)	Epoxy Sealed Terminals	Standard	On-Mom	Button Round	SPDT	85 °C	-40 C	Black
APEM Inc. IMP7Z462234	1000000 Cycles	25000 Steps	28 V	Panel Mount Front	IP67 - Dust Tight Waterproof	3 A	No Marking	13.6 mm	Quick Connect - 0.110" (2.8mm)	Epoxy Sealed Terminals	Standard	On-Mom	Button Round	SPDT	85 °C	-40 C	Red

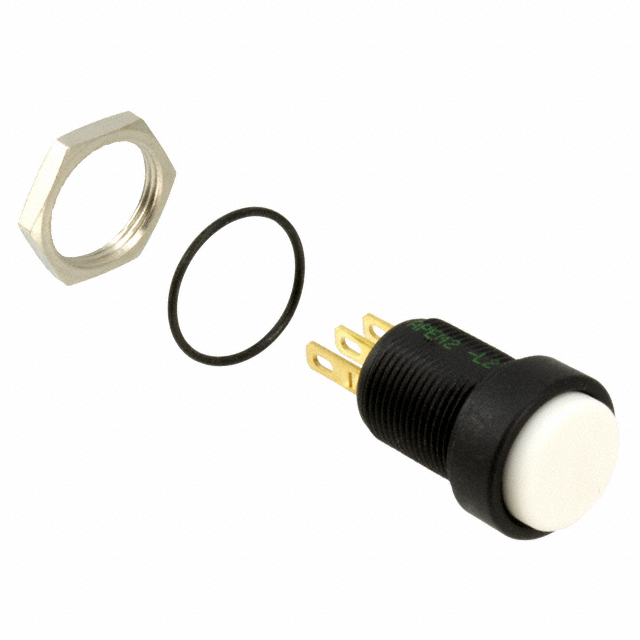

APEM Inc. IMP7Z472234	1000000 Cycles	25000 Steps	28 V	Panel Mount Front	IP67 - Dust Tight Waterproof	3 A	No Marking	13.6 mm	Quick Connect - 0.110" (2.8mm)	Epoxy Sealed Terminals	Standard	On-Mom	Button Round	SPDT	85 °C	-40 C	White
