LXS9-PW Series
Manufacturer: Lumileds
Beta
⌘K

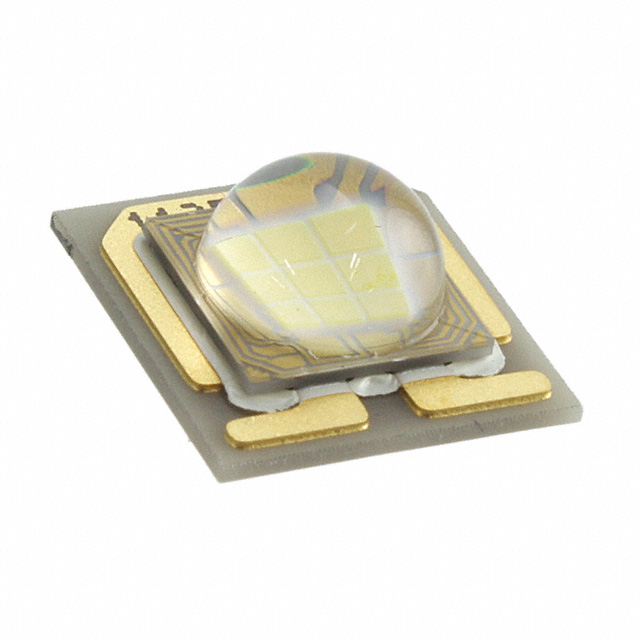

LED UNI-COLOR WHITE 1175LM 3000K CHIP LED 3-PIN SMD TRAY
| Part | Light Emitting Surface (LES) [diameter] | Viewing Angle | Temperature - Test | Height [z] | Lumens/Watt @ Current - Test | Color | Current - Max [Max] | Type | Configuration | Luminous Flux @ Current/Temperature | CRI (Color Rendering Index) | Voltage - Forward (Vf) (Typ) | CCT (K) | Lens Type | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lumileds | 8.06 mm | 105 ° | 85 °C | 6.09 mm | 66 lm/W | Warm White | 900 mA | LED Module | Square | 1175 lm | 90 | 25.6 V | 3000 K | Domed | 13.87 mm | 12.87 mm |
