TCJR Series

Catalog

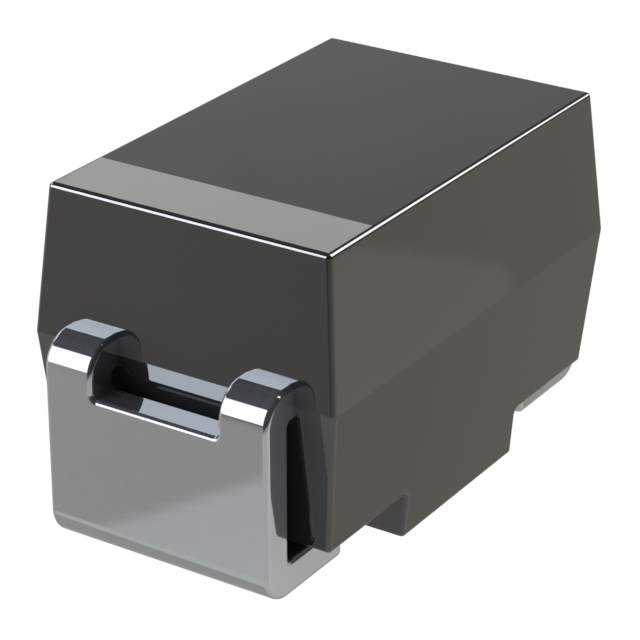

CAP TANT POLY 22UF 6.3V 0805

Part	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Manufacturer Size Code	Voltage - Rated	ESR (Equivalent Series Resistance)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Lifetime @ Temp.	Features	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Type	Capacitance	Tolerance
KYOCERA AVX TCJR226M006R0500	Surface Mount	1.2 mm	0.047 "	R	6.3 VDC	500 mOhm	0.081 in	0.051 in	2.05 mm	1.3 mm	2000 Hrs	General Purpose	0805	-55 C	105 ░C	Molded	22 µF	20 %
KYOCERA AVX TCJR106M006R0500	Surface Mount	1.2 mm	0.047 "	R	6.3 VDC	500 mOhm	0.081 in	0.051 in	2.05 mm	1.3 mm	2000 Hrs	General Purpose	0805	-55 C	105 ░C	Molded	10 µF	20 %
KYOCERA AVX TCJR475M010A0500E	Surface Mount	1.2 mm	0.047 "	R	10 V	500 mOhm	0.081 in	0.051 in	2.05 mm	1.3 mm	2000 Hrs	General Purpose	0805	-55 C	105 ░C	Molded	4.7 µF	20 %
KYOCERA AVX TCJR476M006S0500	Surface Mount	1.2 mm	0.047 "	R	6.3 VDC	500 mOhm	0.081 in	0.051 in	2.05 mm	1.3 mm	2000 Hrs	General Purpose	0805	-55 C	105 ░C	Molded	47 µF	20 %
KYOCERA AVX TCJR475M010R0500	Surface Mount	1.2 mm	0.047 "	R	10 V	500 mOhm	0.081 in	0.051 in	2.05 mm	1.3 mm	2000 Hrs	General Purpose	0805	-55 C	105 ░C	Molded	4.7 µF	20 %
KYOCERA AVX TCJR475M010R0500E	Surface Mount	1.2 mm	0.047 "	R	10 V	500 mOhm	0.081 in	0.051 in	2.05 mm	1.3 mm	2000 Hrs	General Purpose	0805	-55 C	105 ░C	Molded	4.7 µF	20 %
