1986715 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

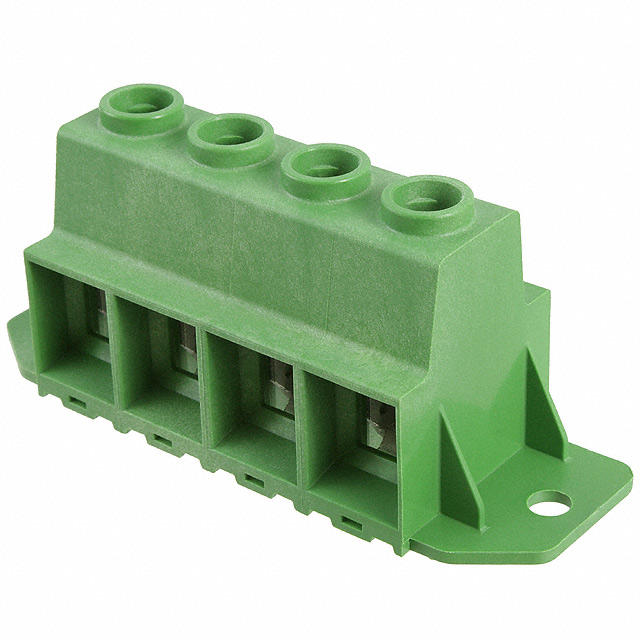

WIRE-TO-BOARD TERMINAL BLOCK, POWER, 15 MM, 4 POSITIONS, 20 AWG, 1 AWG, 3 MM², SCREW
| Part | Housing Material | Operating Temperature [Min] | Operating Temperature [Max] | Clamp Material - Plating | Torque - Screw [Min] | Torque - Screw [Max] | Torque - Screw [Min] | Torque - Screw [Max] | Screw Thread | Screw Material - Plating | Contact Material - Plating | Current | Color | Wire Termination | Number of Levels | Pitch | Pitch | Features | Mounting Type | Wire Gauge [Max] | Wire Gauge [Min] | Mating Orientation | Positions Per Level | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Polyamide (PA) Nylon | -40 C | 110 °C | Steel - Tin Plated | 1.5 LbIn | 1.8 LbIn | 2.1 Nm | 2.5 Nm | M5 | Steel - Nickel Plated | Copper Alloy - Tin Plated | 130 A | Green | Screw | 1 | 15 mm | 0.591 in | Flange (Mounting) | Through Hole | 20 AWG | 1 AWG | Horizontal with Board | 4 | 600 V |
 TE Connectivity AMP Connectors | Polyamide (PA) Nylon | -40 C | 110 °C | Steel - Tin Plated | 1.5 LbIn | 1.8 LbIn | 2.1 Nm | 2.5 Nm | M5 | Steel - Nickel Plated | Copper Alloy - Tin Plated | 130 A | Green | Screw | 1 | 15 mm | 0.591 in | Flange (Mounting) | Through Hole | 20 AWG | 1 AWG | Horizontal with Board | 12 | 600 V |
