AEP180 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K

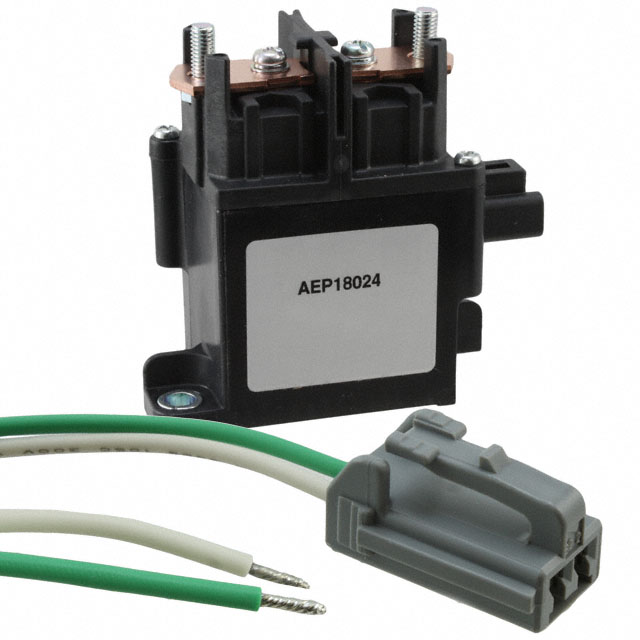

INDUSTRIAL RELAYS 1 FORM A 80A 24VDC SEALED, 4.5W
| Part | Coil Resistance | Contact Form | Seal Rating | Release Time | Coil Voltage | Contact Rating (Current) | Load - Max Switching | Termination Style | Must Release Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Coil Current | Operate Time | Must Operate Voltage | Relay Type | Switching Voltage | Coil Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 127.66 Ohms | SPST-NO (1 Form A) | Sealed - Hermetically | 30 ms | 24 VDC | 80 A | 22160 VA | Stud | 1.92 VDC | 80 °C | -40 C | 188 mA | 50 ms | 18 VDC | General Purpose | 277 VAC 400 VDC | Non Latching | Chassis Mount |
