5280-8PG Series

Catalog

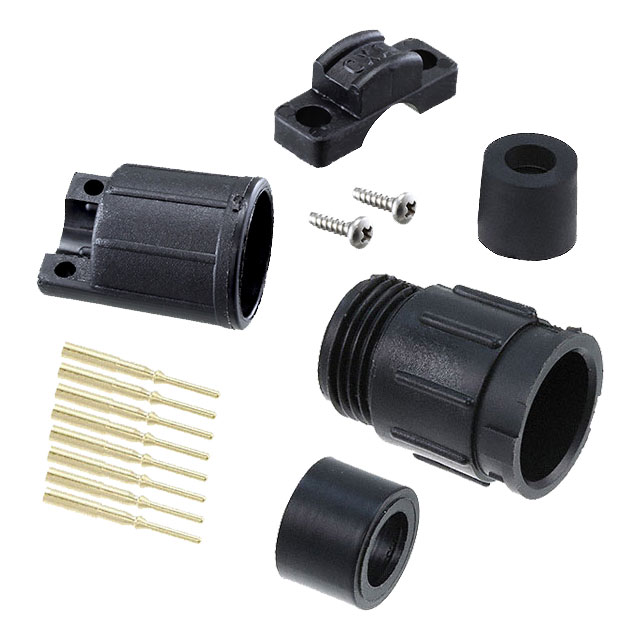

MULTI-CON CABLE-CABLE #20 CRIMP

Part	Mounting Type	Backshell Material, Plating	Features	Color	Current Rating (Amps)	Orientation	Ingress Protection	Termination	Contact Material	Fastening Type	Contact Finish - Mating	Number of Positions	Primary Material	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Min]	Cable Opening [Max]	Shielding	Voltage Rating	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]
SWITCHCRAFT/CONXALL 5280-8PG-330	Free Hanging (In-Line)	Nylon Polyamide (PA)	Backshell	Black	5.6 A	Keyed	Weathertight	Crimp	Brass	Bayonet Lock	Gold	8	Plastic	0.32 in	0.3 in	7.62 mm	8.13 mm	Unshielded	600 V	Receptacle Male Pins	115 °C	-40 C
SWITCHCRAFT/CONXALL 5280-8PG-324	Free Hanging (In-Line)	Nylon Polyamide (PA)	Backshell	Black	5.6 A	Keyed	Weathertight	Crimp	Brass	Bayonet Lock	Gold	8	Plastic	0.27 "	0.24 "	6.1 mm	6.86 mm	Unshielded	600 V	Receptacle Male Pins	115 °C	-40 C
SWITCHCRAFT/CONXALL 5280-8PG-530	Free Hanging (In-Line)	Nylon Polyamide (PA)	Backshell Cable Clamp	Black	5.6 A	Keyed	Weathertight	Crimp	Brass	Bayonet Lock	Gold	8	Plastic	0.32 in	0.3 in	7.62 mm	8.13 mm	Unshielded	600 V	Receptacle Male Pins	115 °C	-40 C
SWITCHCRAFT/CONXALL 5280-8PG-321	Free Hanging (In-Line)	Nylon Polyamide (PA)	Backshell	Black	5.6 A	Keyed	Weathertight	Crimp	Brass	Bayonet Lock	Gold	8	Plastic	0.23 in	0.21 in	5.33 mm	5.84 mm	Unshielded	600 V	Receptacle Male Pins	115 °C	-40 C
SWITCHCRAFT/CONXALL 5280-8PG-315	Free Hanging (In-Line)	Nylon Polyamide (PA)	Backshell	Black	5.6 A	Keyed	Weathertight	Crimp	Brass	Bayonet Lock	Gold	8	Plastic	0.17 in	0.15 "	3.81 mm	4.32 mm	Unshielded	600 V	Receptacle Male Pins	115 °C	-40 C
SWITCHCRAFT/CONXALL 5280-8PG-318	Free Hanging (In-Line)	Nylon Polyamide (PA)	Backshell	Black	5.6 A	Keyed	Weathertight	Crimp	Brass	Bayonet Lock	Gold	8	Plastic	0.2 "	0.18 "	4.57 mm	5.08 mm	Unshielded	600 V	Receptacle Male Pins	115 °C	-40 C
