54 Series

Catalog

CURRENT SENSING TRANSFORMER, 1:1:100, 14.8 MH, 15 A, 50KHZ TO 500KHZ, 3.2 OHM

Part	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Termination Style	Turns Ratio - Primary:Secondary	DC Resistance (DCR) [custom]	DC Resistance (DCR) [custom]	Type	Inductance	Frequency Range [Min]	Frequency Range [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current Ratio	Current Rating (Amps)	Turns Ratio - Primary:Secondary [Min]	Turns Ratio - Primary:Secondary [Max]	DC Resistance (DCR)	Turns Ratio - Primary:Secondary [y]	Turns Ratio - Primary:Secondary [x]	Turns Ratio - Primary:Secondary [custom]
Murata Electronics 54100C	Surface Mount	0.425 " 10.8 mm	0.354 in 9 mm	Gull Wing	1 100	3.2 Ohm	7 mOhm	Invasive	14.8 mH	50 kHz	500 kHz	0.323 in	8.2 mm

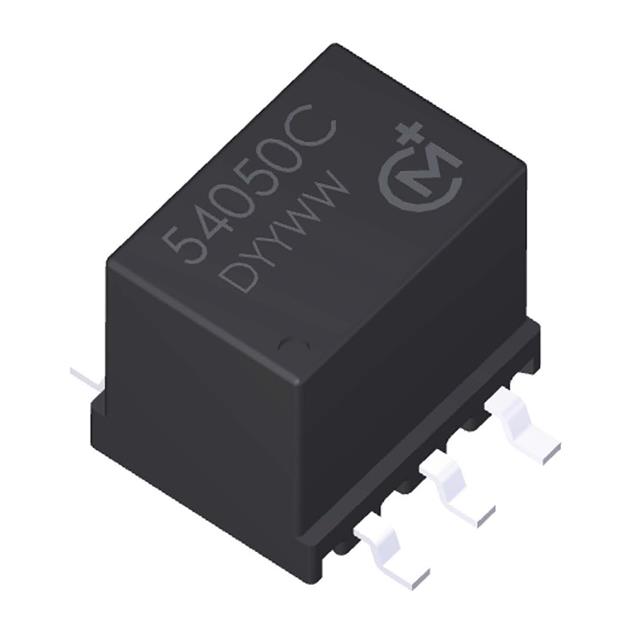

Murata Electronics 54050C	Surface Mount			Gull Wing				Invasive	3.8 mH	50 kHz	500 kHz	0.323 in	8.2 mm	50:1:1	15 A	1 CT	1 50	50 Ohm
Murata Electronics 54200C	Surface Mount	0.425 " 10.8 mm	0.354 in 9 mm	Gull Wing		6.6 Ohm	7 mOhm	Invasive	60 mH	50 kHz	500 kHz	0.323 in	8.2 mm						1	1	200
Murata Electronics 54050C	Surface Mount	0.425 " 10.8 mm	0.354 in 9 mm	Gull Wing		500 mOhm	7 mOhm	Invasive	3.8 mH	50 kHz	500 kHz	0.323 in	8.2 mm			1 CT	1 50
