R85049 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN BACKSHELL BANDING SZ17 E
| Part | For Use With/Related Products | Includes | Features | Type | Shielding | Color | Cable Exit | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Plating | Material | Shell Size - Insert | Shell Size - Insert | Cable Opening | Cable Opening | Accessory Type | Qualification | Grade | Shell Size - Insert [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | MIL-DTL-38999 Series III IV | 1 Backshell 1 O-Ring | Self Locking | Backshell Banding | Shielded | Olive Drab | 180 ° | 1.406 " | 35.71 mm | Cadmium | Aluminum | 17 | E | 12.7 mm | 0.5 in | ||||
 TE Connectivity AMP Connectors | |||||||||||||||||||
 TE Connectivity AMP Connectors | MIL-DTL-38999 Series III IV | 1 Backshell 1 O-Ring | Self Locking | Backshell Banding | Shielded | Black | 180 ° | 1.279 " | 32.49 mm | Zinc Nickel | Aluminum | 15 | D | 14.27 mm | 0.562 in | ||||
TE Connectivity AMP Connectors | |||||||||||||||||||
TE Connectivity AMP Connectors | |||||||||||||||||||

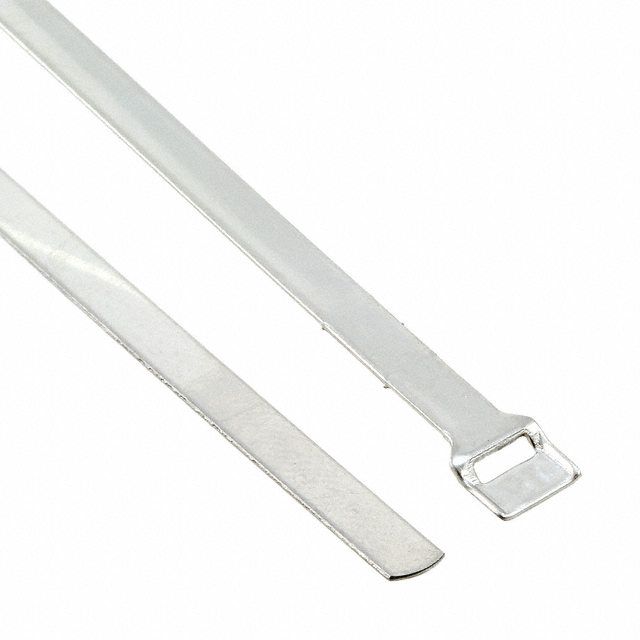

 TE Connectivity AMP Connectors | M85049/88 Circular Shrink Boot Adapter | Flat | Silver | Termination Band | SAE AS 85049 | Military | |||||||||||||
 TE Connectivity AMP Connectors | Banding Backshells and Braid Socks | Split-Ring Banding | SAE AS 85049 | Military | 12 | ||||||||||||||
 TE Connectivity AMP Connectors | MIL-DTL-38999 Series III IV | Self Locking | Backshell Banding | Shielded | Black | 180 ° | 1.157 " | 29.39 mm | Zinc Nickel | Aluminum | C | 7.92 mm | 0.312 in | ||||||
 TE Connectivity AMP Connectors | MIL-DTL-38999 Series III IV | 1 Backshell 1 O-Ring | Self Locking | Backshell Banding | Shielded | Olive Drab | 180 ° | 1.279 " | 32.49 mm | Cadmium | Aluminum | 15 | D | 11.12 mm | 0.438 " | ||||
 TE Connectivity AMP Connectors | Banding Backshells and Braid Socks | 4 | Split-Ring Banding | SAE AS 85049 | Military |
