72162000 Series

Catalog

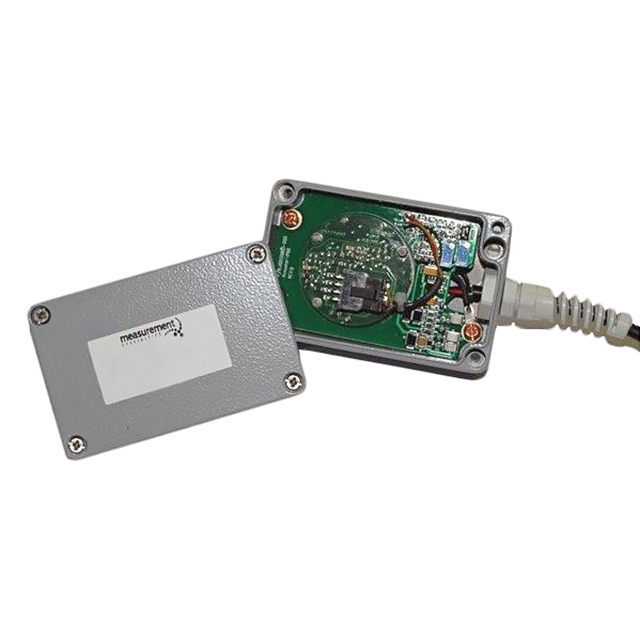

INCLINOMETERS ACCUSTAR IP-66 +/- 5 DEGREE

Part	Measuring Range	Voltage Rating [Min]	Voltage Rating [Max]	Package / Case	Interface	Output Type	Bandwidth	Sensitivity	Operating Temperature [Min]	Operating Temperature [Max]	Axis	Measuring Range [Max]	Measuring Range [Min]

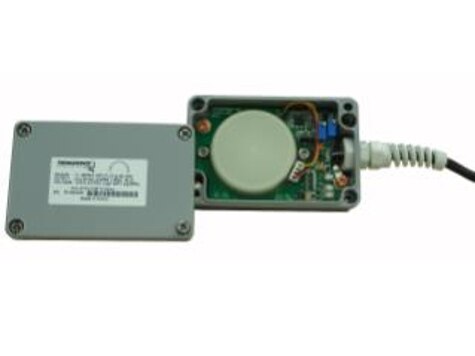

TE Connectivity AMP Connectors 72162000-005	5 °	12 V	30 V	Module	Analog	Voltage and Current	0.5 Hz	1 %	-25 °C	60 °C	X or Y
TE Connectivity AMP Connectors 72162000-010		12 V	30 V	Module	Analog	Voltage and Current	0.5 Hz	1 %	-25 °C	60 °C	X or Y	10 °	-10 °
TE Connectivity AMP Connectors 72162000-030	30 °	12 V	30 V	Module	Analog	Voltage and Current	0.5 Hz	1 %	-25 °C	60 °C	X or Y
TE Connectivity AMP Connectors 72162000-090	90 °	12 V	30 V	Module	Analog	Voltage and Current	0.5 Hz	1 %	-25 °C	60 °C	X or Y
TE Connectivity AMP Connectors 72162000-045		12 V	30 V	Module	Analog	Voltage and Current	0.5 Hz	1 %	-25 °C	60 °C	X or Y
