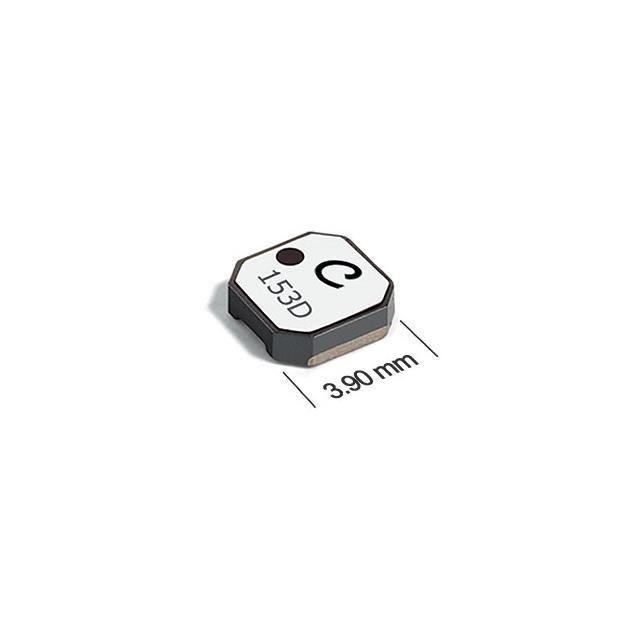

LPS4012 Series

Manufacturer: Coilcraft

Catalog

POWER INDUCTORS - SMD 1.5 MH SHLD 20% 90MA 30 OHMS

Part	Package / Case	Shielding	Current Rating (Amps)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Inductance Frequency - Test	DC Resistance (DCR) [Max]	Inductance	Frequency - Self Resonant	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Material - Core	Tolerance	Current - Saturation (Isat)	Type	Ratings	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR)
Coilcraft LPS4012-155MRC	Nonstandard	Shielded	115 mA	0.154 "	3.9 mm	3.9 mm	0.154 in	100 kHz	30 Ohm	1.5 mH	2.5 MHz	1.2 mm	0.047 "	Surface Mount	Ferrite	20 %	90 mA	Drum Core	AEC-Q200	85 °C	-40 C
Coilcraft LPS4012-224MRC	Nonstandard	Shielded	270 mA	0.154 "	3.9 mm	3.9 mm	0.154 in	100 kHz	5.2 Ohm	220 µH	7 MHz	1.2 mm	0.047 "	Surface Mount	Ferrite	20 %	170 mA	Drum Core	AEC-Q200	85 °C	-40 C
Coilcraft LPS4012-153MRC	Nonstandard	Shielded	0.73 A	0.154 "	3.9 mm	3.9 mm	0.154 in	100 kHz		15 µH	30 MHz	1.2 mm	0.047 "	Surface Mount	Ferrite	20 %	840 mA	Drum Core	AEC-Q200	85 °C	-40 C	550 mOhm
Coilcraft LPS4012-225MRC	Nonstandard	Shielded	0.09 A	0.154 "	3.9 mm	3.9 mm	0.154 in	100 kHz	42 Ohm	2.2 mH	1 MHz	1.2 mm	0.047 "	Surface Mount	Ferrite	20 %	85 mA	Drum Core	AEC-Q200	85 °C	-40 C
