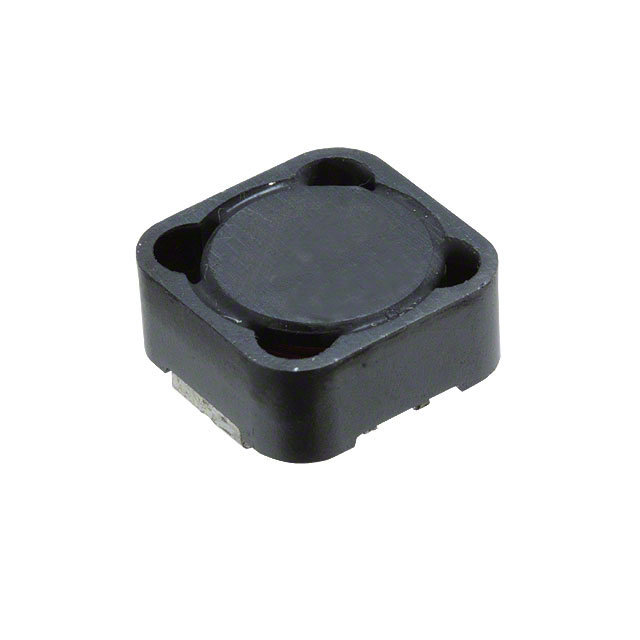

P1170NL Series
Manufacturer: Pulse Electronics
Beta
⌘K
POWER INDUCTORS - SMD SHD DRUM CORE IND
| Part | Height - Seated (Max) | Height - Seated (Max) [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Inductance Frequency - Test | Current Rating (Amps) | Shielding | DC Resistance (DCR) [Max] | Package / Case | Frequency - Self Resonant | Tolerance | Type | Operating Temperature [Max] | Operating Temperature [Min] | Inductance | Mounting Type | Current - Saturation (Isat) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | 6 mm | 0.236 " | 12.24 mm | 12.24 mm | 0.482 in | 0.482 " | 100 kHz | 1.4 A | Shielded | 230 mOhm | Nonstandard | 5.5 MHz | 20 % | Wirewound | 130 °C | -40 C | 100 µH | Surface Mount | 1.4 A |
