196 HVC ENYCAP Series

Catalog

ELECTROLYTIC CAPACITOR, ENYCAPT, 196 HVC SERIES, 15 F, +80%, -20%, 5.6 V, 12 MM, RADIAL LEADED ROHS COMPLIANT: YES

Part	Mounting Type	Height - Seated (Max)	Lead Spacing	Tolerance (Negative)	Tolerance (Positive)	Package / Case	Voltage - Rated	ESR (Equivalent Series Resistance)	Size / Dimension Diameter	Size / Dimension Length	Capacitance	Lifetime	Operating Temperature (Max)	Operating Temperature (Min)	Termination	Size / Dimension Width
Vishay Dale MAL219691214E3	Through Hole	0.472 in	0.197 in	20 %	80 %	Coin Stacked Horizontal	5.6 VDC	2.4 Ohm	0.472 in	0.394 in	15 F	1000 Hrs	85 °C	-20 °C	PC Pins
Vishay Dale MAL219690113E3	Through Hole	0.295 in	0.984 in	20 %	80 %	Coin Stacked Horizontal	2.8 VDC	30 mOhm		1.378 in	90 F	2000 Hrs	85 °C	-20 °C	PC Pins	0.984 in

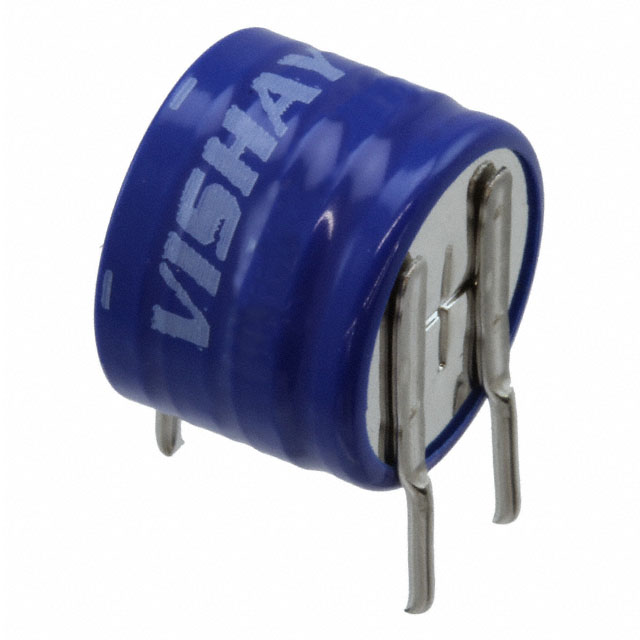

Vishay Dale MAL219691103E3	Through Hole	0.295 in	0.295 in	20 %	80 %	Coin Stacked Vertical	4.2 V	7.5 Ohm	0.276 in		4 F	1000 Hrs	70 °C	-20 °C	PC Pins
Vishay Dale MAL219690106E3	Through Hole	0.197 in	0.394 in	20 %	80 %	Coin Stacked Vertical	1.4 VAC	15 mOhm		1.378 in	90 F	2000 Hrs	85 °C	-20 °C	PC Pins	0.984 in
Vishay Dale MAL219691116E3	Through Hole	0.276 in	0.571 in	20 %	80 %	Coin Stacked Horizontal	8.4 VDC	15 Ohm	0.276 in	0.591 in	4 F	1000 Hrs	70 °C	-20 °C	PC Pins
